LG 55″ inch 55VM5J-H 500 Nits FHD Slim Bezel Video Wall

55” 500 nits FHD Slim Bezel Video Wall
  • Brightness(Typ.) : 500 nit
  • Bezel : 1.74mm (Panel Bezel to Panel Bezel), 1.3mm (T/L), 0.44mm (B/R)
  • Depth : 86.9 mm
  • Interface : HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR

Artistic Immersion, Overwhelming Captivation

A big video wall is installed on the wall of the car showroom and the car advertisement is on the screen.
*All images in this web page are for illustrative purposes only.

Seamless Large Screens with Extreme-Narrow Bezel

The ultra slim bezel, with its 1.74mm BtoB (Panel Bezel to Panel Bezel), drastically reduces bezel interference and delivers immersive and seamless content on assembled video wall screens.
A video wall is installed in the lobby, and it provides immersive images with ultra slim bezel.
*The 1.74mm BtoB (Panel Bezel to Panel Bezel) have been verified by Nemko, a global institution that tests and certifies electrical equipment.

Image Gap Reduction

The VM5J-H includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience.
VM5J-H consists of less image gaps between the tiled screens compared to the LG Conventional. This improves the viewing experience of the displayed content as it minimizes the visual disturbance by the gaps.
*The “LG Conventional” refers to displays which do not include an image improvement algorithm.
**The image shown above are for illustration purposes only.
*Results based on in-house testing. Actual test results may differ depending on environment and measuring equipment.
*SDK can be downloaded with the link below. (https://webossignage.developer.lge.com).
*Supported protocols : RTSP, RTP, HLS, UDP Multicast.

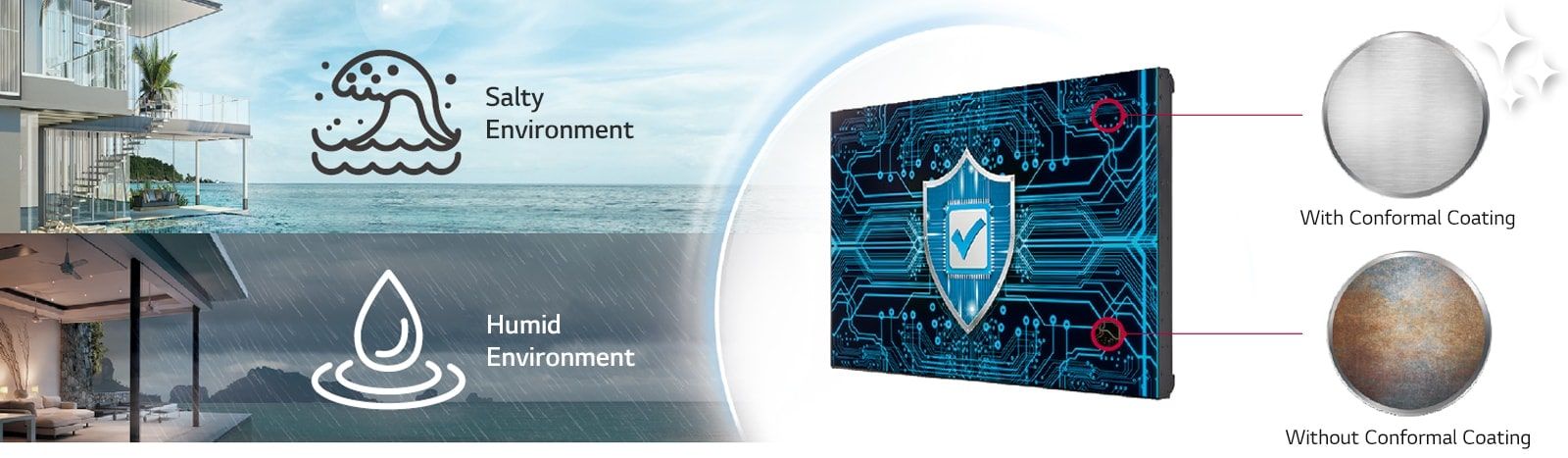

Conformal Coating

Video wall in various places can’t avoid exposure to environments with dust, and humidity, which may lead to hampered performance over time. Conformal coating on the major circuit board (power board) significantly reduces these risks from such environments by protecting video wall from salt, dust, iron powder, humidity, etc.
The VM5J-H has Conformal Coating on the major circuit board (power board) to protect video wall even in a salty or humid environment.
*Actual images (Signage display) available may differ from the example images shown.

EMC Class B Certified

The VM5J-H is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments. Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.
The VM5J-H, certified with EMC class B, is installed on the control room wall.

Real-Time LG ConnectedCare

Maintenance is easy and fast with the optional LG ConnectedCare* service, a cloud service solution provided by LG. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients’ businesses.
The LG employee is remotely monitoring the VH7J-H installed in a different place by using cloud-based LG monitoring solution.
*LG ConnectedCare is the brand name of LG Signage365Care Service. The availability differs by region.

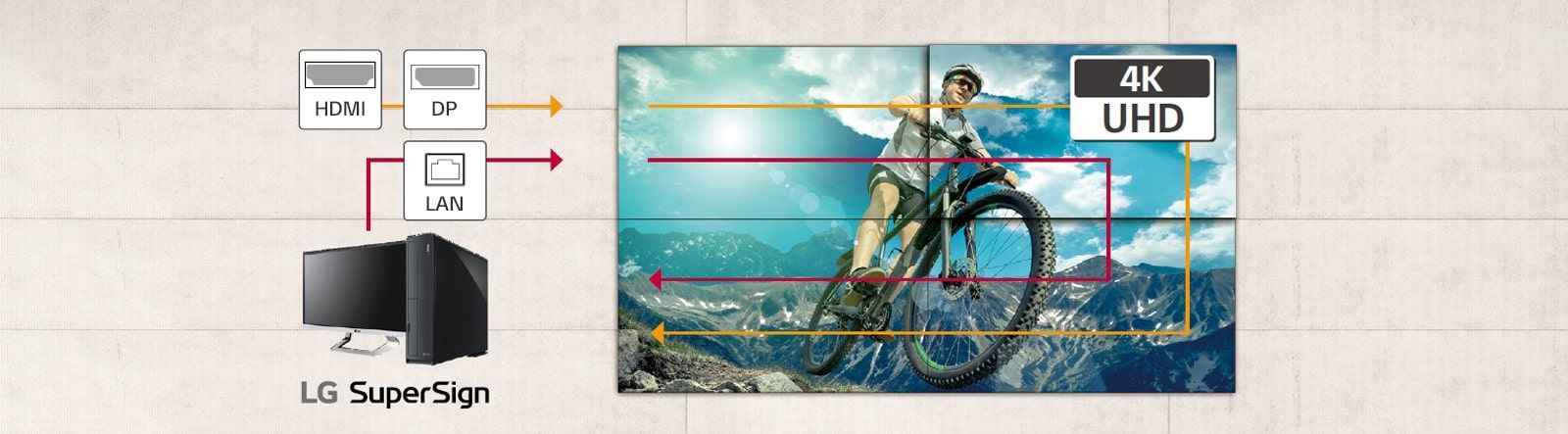

Daisy Chain Capability

A LAN daisy chain allows you to control and monitor video walls and even update their firmwares at once. Also, through UHD daisy chain using HDMI and DisplayPort, you can easily set up a UHD video wall without the need of DisplayPort MST.
Multiple displays are being managed simultaneously through the LAN daisy chain. The UHD daisy chain utilizing HDMI and DisplayPort allows easy access to adjusting UHD settings.

IP5x Certified Design

The IP5x Dust-Proof Certification ensures that the product is protected from dust, eliminating the risk of performance degradation.
The VH7J-H, with IP5x Dust-Proof Certification, protects the product from dust.
  • Screen Size
    Panel Technology
  • Back Light Type
    Aspect Ratio
    16 : 9
  • Native Resolution
    1,920 x 1,080 (FHD)
    Refresh Rate
  • Brightness(Typ., nit)
    Contrast Ratio
  • Dynamic CR
    Color Gamut
    NTSC 72%
  • Viewing Angle(H x V)
    178 x 178
    Color Depth
    10bit, 1.07Billion colors
  • Response Time
    8 ms (G to G)
    Surface Treatment(Haze)
  • Life time
    60,000Hrs (Typ.) / 50,000Hrs (Min.)
    Operation Hours (Hours/Day)

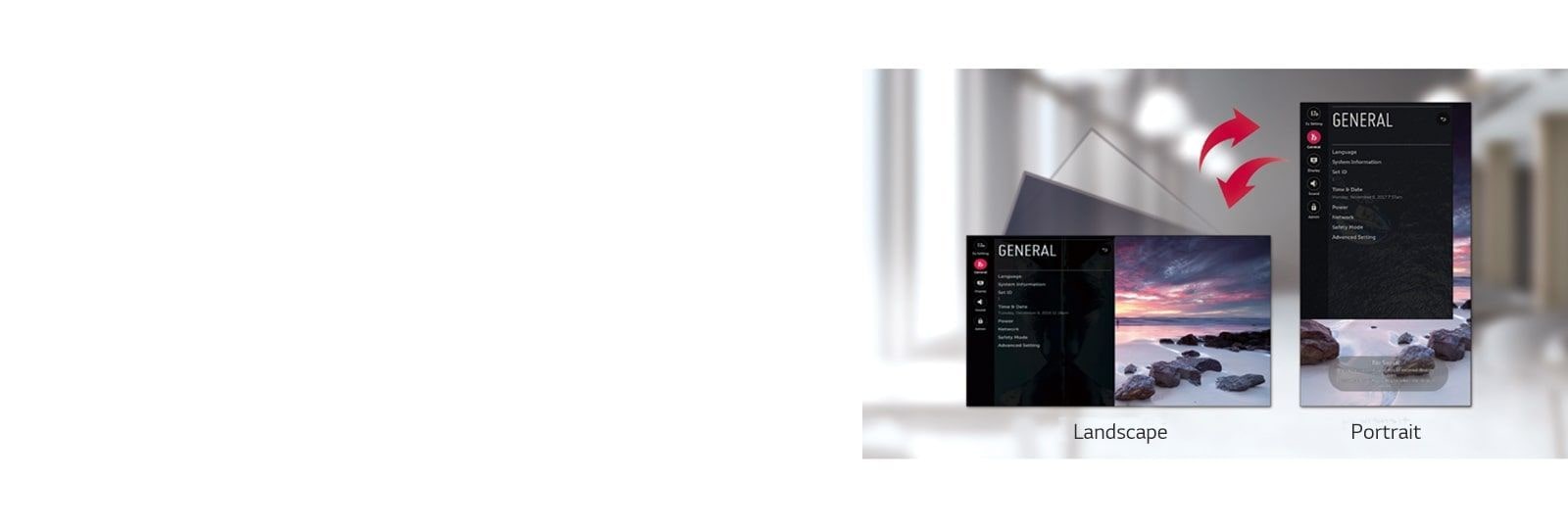

  • Portrait / Landscape
    Yes / Yes
  • Input
    HDMI 2 (HDCP 2.2), DP (HDCP 2.2), DVI-D (HDCP 1.4), Audio In, RS-232C In, RJ45 (LAN), IR In, USB 2.0 Type A
    DP Out (Input : HDMI / DVI / DP), Audio Out, RS-232C Out, RJ45 (LAN)
  • Bezel Color
    Bezel Width
    B2B : 1.74mm (Panel Bezel to Panel Bezel),
    1.3mm(T/L), 0.44mm(B/R)
    A2A : 2.49mm (Active area to Active area),
    1.75mm(T/L), 0.74mm(B/R)
  • Weight(Head)
    18.8 Kg
    Packed Weight
    31.0 Kg (when individual pallet applied)
  • Monitor Dimension(W x H x D)
    1,212.2 × 683.0 × 86.9 mm
    Carton Dimensions(W x H x D) (Box outer size)
    1,353 x 855 x 263 mm
  • Handle
    VESA™ Standard Mount Interface
    600 x 400
  • HW
    Internal Memory 8 GB, Sensor (Temperature Sensor, BLU Sensor, Acceleration(Gyro) Sensor), Local Key Operation
    webOS 4.1, Embedded CMS (Local Contents Scheduling, Group Manager), USB Plug & Play, Fail Over, Background Image (No Signal Image), Sync Mode (RS-232C Sync, Local Network Sync), Video Tag (4), Play via URL, Rotation (Screen Rotation, External Input Rotation), Gapless Playback, Tile Mode Setting (Max. 15 × 15), Setting Data Cloning, SNMP, ISM Method, Auto Set ID, Status Mailing, Control Manager, 3rd Party Compatibility (Crestron Connected®2)), Power (Smart Energy Saving, PM Mode, Wake on LAN, Network Ready), HDMI-CEC3), SI Server Setting, webRTC, Pro:Idiom, W/B Setting by Grey Scale, Scan Inversion
  • Operation Temperature
    0 °C to 40 °C
    Operation Humidity
    10% to 80%
  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Typ.
    200 W
    250 W
  • BTU (British Thermal Unit)
    682 BTU/Hr(Typ.), 853 BTU/Hr(Max)
    Smart Enegy Saving
    105 W
  • DPM
    Power off
    0.5 W
  • Safety
    CB / NRTL
    FCC Class “B” / CE / KC
  • ErP
    Yes (Energy Star 8.0 (EU Only))
  • OPS type compatible
    Yes (Piggyback)
  • SuperSign CMS
    SuperSign Control / Control+
    Yes / Yes
  • SuperSign WB
    SuperSign Media Editor
  • LG Connected care
  • OSD
    English, French, German, Spanish, Italian, Korean , Chinese(Simplified), Chinese(Original), Portugues(Brazil), Swedish, Finnish, Norwegian, Danish, Japanese, Russian, Portugues(Europe), Dutch, Czech, Greek,Turkish, Arabic
  • Basic
    Remote Controller(include battery 2ea), Power Cord, RS232C cable, Lan calbe, DP cable, IR Receiver, Guide Bracket, Screws, Manual
    OPS Kit (KT-OPSF)
  • IP Rating
    IP5X tested
Weight 19 kg
Dimensions 122 × 69 × 88 cm
