Description
An Essential Way of Delivering Dynamic Content
The SE3KE series satisfies a wide range of display purposes in your business while reducing operational costs with low power consumption. Easy-to-use menus designed for business purposes make for a more convenient and powerful display.
Simple Content Management
User-Friendly Menu for Digital Signage
With the signage dedicated home menu, users can check key information related to displays at a glance. On the bottom, the content management menu is provided, letting you explore and play available content and set playlists with desired schedules using a remote controller.
Simple Content Management

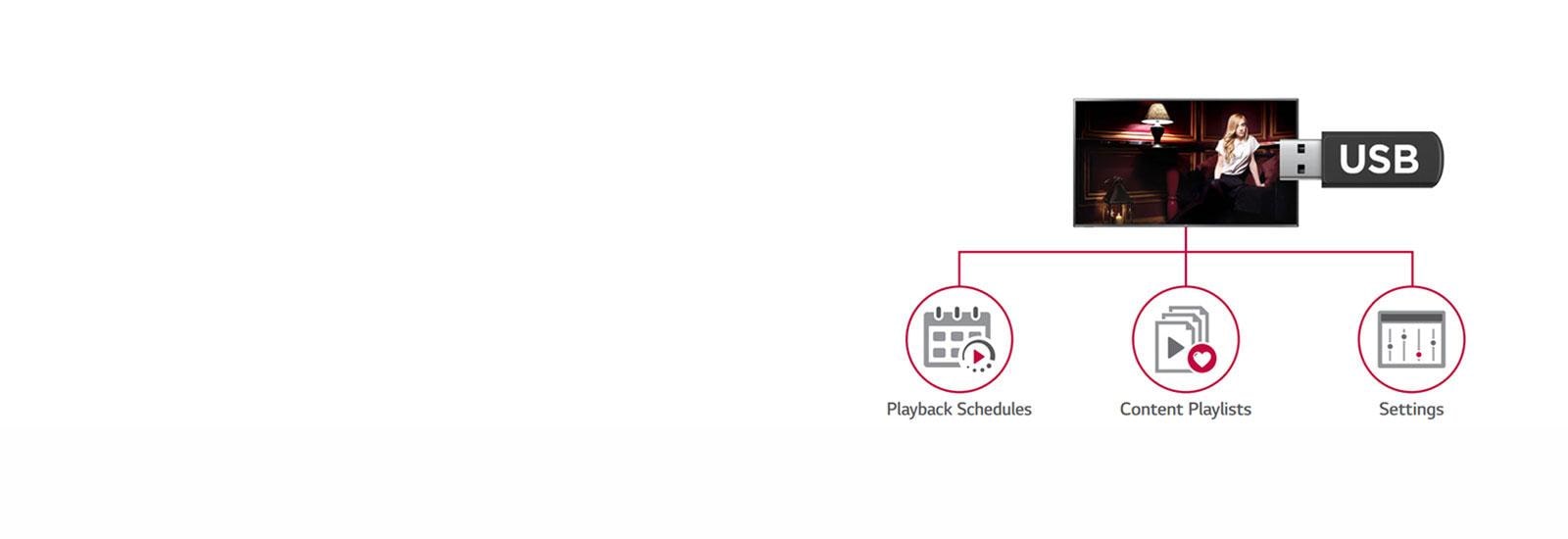

USB Content Scheduling & Data Cloning
USB content scheduling and cloning makes managing multiple displays more efficient for optimal content playback and operation, since users don’t have to set up each display one by one. Once users copy data to a USB in one display, it will be easily distributed to others through a USB plug-in.
-
Efficient Operation
-
Stand-by Screen Mode
The SE3KE series partially keeps power-on status controllable by network while the screen is turned off, enabling efficient power management.
-
Scheduled Screen Wash
ISM (Image Sticking Minimization) mode supports users in setting up periods and times to refresh the screen to prevent the occurrence of image sticking.
-
18/7 Operation
The SE3KE series can be operated for 18 hours a day, which provides users with the flexibility to allocate and operate it in places that are open for long periods of time.
Excellent Connectivity

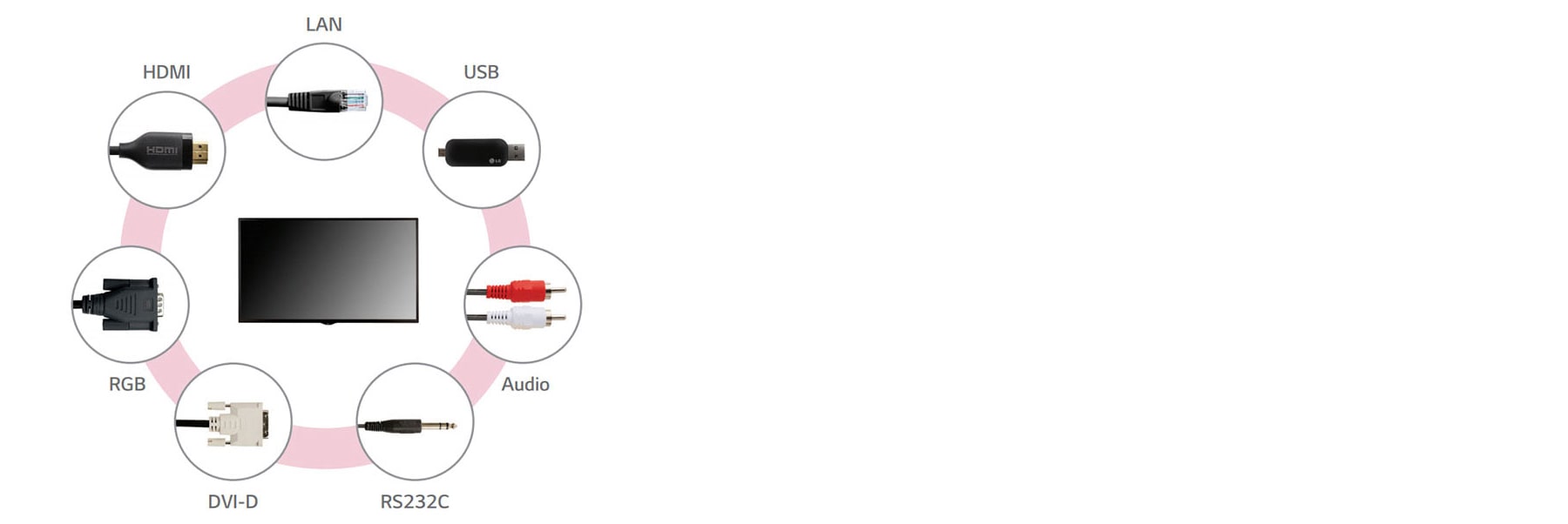

A Wide Range of Interfaces
Thanks to its high compatibility with diverse interfaces, users can select among various input/output sources for optimal content playback and control.
Excellent Connectivity
Compatibility with AV Control Systems
The SE3KE series has been certified Crestron ConnectedⓇ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1, boosting business management efficiency.
1) Network based control.
Industrial Design
Detachable Logo & Built-in Speaker
The detachable logo makes it easy for the user to arrange the signage. Also, sounds can be played from built-in speakers, offering viewers various multi-media experiences.
Industrial Design
Conformal Coating
The product can be often unavoidably exposed to dust and water during maintenance. Conformal coating on major circuit board eliminates such circumstances by protecting it against dust, iron powder, humidity, etc.
Product Description
GENERAL
-
- Screen size (inches)
- 65
- Aspect Ratio
- 16:9
-
- Resolution
- 1920 x 1080
- Brightness (cd/m2)
- 400
-
- Contrast Ratio
- 1,300:1, 500,000:1 (DCR)
- Response Time (ms)
- 12
-
- Viewing Angle (°)
- 178 x 178
- Colour Depth (Num of Colours)
- 1.06 Billion
-
- Surface Treatment
- Hard coating(3H), Anti-glare treatment of the front polarizer (Haze 1%(Typ.))
CONNECTIVITY – INPUT
-
- Digital
- HDMI(1), DVI-D(1)
- Analog
- RGB(1)
-
- Audio
- YES(1)
- External Control
- RS232C, RJ45, IR receiver
-
- USB
- 2
- HDTV Formats
- HDMI : 720p, 1080i, 1080p
CONNECTIVITY – OUTPUT
-
- Audio
- Yes
- External Control
- RS232C(1)
AUDIO
-
- Audio Power
- 20W(10W x 2) for Internal Speaker (6 ohm)
- Balance
- Yes
-
- Speaker On/off
- Yes
- Clear Voice II
- Yes
-
- Surround System
- Vertual Surround
- Equalizer
- Yes
-
- Sound mode
- Standard, News, Music, Cinema, Sport, Game
FEATURE
-
- HDMI-CEC
- Yes
- Lock mode
- USB
SPECIAL FEATURES
-
- Temperature Sensor
- Yes
- Tile Mode
- Yes, Up to 15 x 15
-
- Natural Mode @Tile Mode
- Yes
- Source Selection
- RGB, HDMI, DVI, USB1, USB2
-
- Brightness/Contrast/Backlight
- Yes
- Position/Size
- Yes
-
- Auto Config/Phase
- Yes
- Advanced
- Dynamic Contrast, Dynamic Color, Color Gamut, Skin Color, Sky Color, Grass color, Gamma
-
- Time
- Clock, On/Off Time, Auto Off, Automatic Standby
- Input Label
- Yes(PC/DTV)
-
- DPM Select
- Yes
- Calibration mode
- Yes
STANDARD (CERTIFICATION) & VESA MOUNTING
-
- Safety
- UL / cUL / CB / TUV / KC
- EMC
- FCC Class “A”, CE, KCC
-
- VESA Mounting
- 300 x 300
POWER
-
- Power Supply
- 100-240V, 50/60HZ
- Power Type
- Built-In Power
-
- Power Consumption
- Typ.:95W, Smart Energy Saving:70W, DPM:0.7W, Power off:0.5W
DIMENSIONS – WXHXD (MM)
-
- Monitor
- 1456.9mm x 838mm x 56.5mm
- Monitor with Optional Stand
- 1456.9mm x 898.1mm x 293.7mm
WEIGHT (KG)
-
- Monitor
- 27.9Kg
- (Head+Stand)
- 32.9Kg
MEDIA PLAYER COMPATIBILITY
-
- External Media player Attachable
- Yes (MP500/MP700)
SOFTWARE COMPATIBILITY
-
- Supersign Compatibility
- SuperSign-w lite, SuperSign-c
