LG 86" inch 86UH5E 500 Nits 120Hz UHD Digital Signage
LG 86" inch 86UH5E 500 Nits 120Hz UHD Digital Signage

LG 86″ inch 86UH5E 500 Nits 120Hz UHD Digital Signage

RM25,881.00
86UH5E-B

UH5E Series

  • Brightness(Typ.) : 500 cd/m²
  • Bezel : 14.3 mm (Even, Off-Bezel)
  • Depth : 60.6 mm (without Handle and Logo)
  • Interface : HDMI(3)/DP/DVI-D/USB 2.0(2)/ RS232C/ RJ45/ Audio/ IR
  • Built-in Speaker(10W+10W)
SKU: 86UH5E
Category:
Tags: , , ,
Vibrant Colors and Powerful Performance<br>1

Vibrant Colors and Powerful Performance

With superb picture quality and cutting-edge intelligence, the UH5E series enlivens colors without the aid of peripherals. Its quality and brightness are enough to capture the attention of passersby. Moreover, its convenient advanced usability allows users to effortlessly control and manage the display.

  • Superior Picture Quality

    Superior Picture Quality1

  • True Color, Immersive View

    The UH5E series is large enough to display content and get undivided attention from various viewers. LG IPS panel features a wide range of angle to deliver clear content regardless of the position of viewers. Each pixel in the IPS panel reproduces image colors true-to-life, without distortion.

  • Vivid Color Details with Ultra HD

    The UHD resolution allows users to view details even when zooming in on the display, with four times higher definition than FHD. The UH5E ensures stable UHD video playback with HEVC(High Efficiency Video Coding).

Easy Content Management<br>1
Powerful webOS Smart Signage Platform

Easy Content Management

The embedded CMS(Content Management System) allows you to create and edit content using internal/external sources as well as set playlists to play at the desired schedule without the need for a separate PC. Thanks to the intuitive GUI and a menu structure based on usage scenarios, content management has been made much easier
Simple Group Management<br>1
Powerful webOS Smart Signage Platform

Simple Group Management

The embedded Group Manager makes a master display work as a server and manage other displays1) connected on the same network. This way you can group and control multiple displays in your place of business and distribute playlists to them all at once, using input devices such as a remote control.
1) One master display can create a max. of 25 groups, and each group can consist of a max. of 12 slave displays.
Various Sensor Applications<br>1
Powerful webOS Smart Signage Platform

Various Sensor Applications

LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc. via USB plug-in. The overall cost of ownership is reduced as there’s no need to purchase additional software or media players for creating value-added solutions.
Multi Screen Mode<br>1
Powerful webOS Smart Signage Platform

Multi Screen Mode

PBP(Picture-By-Picture) features multi screen in a single display with upto 4 input sources while PIP(Picture-In-Picture) supports playing both main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content souce.
Real-Time Monitoring & Control<br>1
Easy Maintenance

Real-Time Monitoring & Control

Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple displays in different locations in realtime. It is available on internet-connected devices, allowing you to flexibly and
rapidly respond to emergency situations anywhere.
Real-time Care Service<br>1
Easy Maintenance

Real-time Care Service

The maintenance gets easier and faster with an optional service Signage 365 Care*, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, ensuring the stable operation of a client’s business.
* The availability of “Signage 365 Care” service can differ by region,so please contact the LG sales representative in your region for further details.
Wireless Solution<br>1

Wireless Solution

Content Sharing
Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion
With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
Wireless Access Point<br>1
Wireless Solution

Wireless Access Point

The UH5E series operates as a virtual router which can be an wireless access point for mobile devices.
Compatibility with AV Control System<br>1
High Compatibility

Compatibility with AV Control System

The UH5E series has been certified Crestron ConnectedⓇ for a higher level of compatibility with professional AV controls to achieve seamless integration and automated control1), boosting business management efficiency.
1) Network-based control
Compatibility with Video Conference System<br>1
High Compatibility

Compatibility with Video Conference System

For the optimum visual meeting, the UH5E has certified its compatibility with Cisco Spark Room Kits, a system that offers powerful and integrated control1) for a smarter video conference, eliminating a waste of time to set up the picture quality or to change input on incoming calls.
1) The integrated control of the display and Cisco system is enabled through the HDMI cable connection.

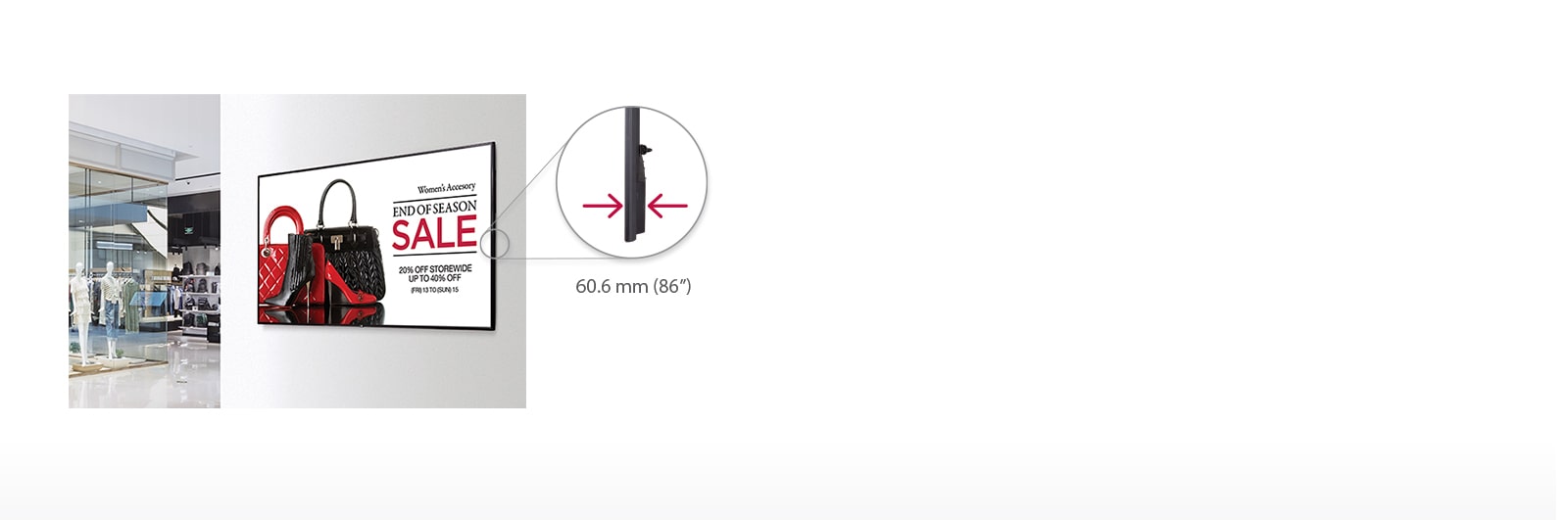

Slim and Tidy in Appearance<br>1
Space-efficient Design

Slim and Tidy in Appearance

Although UH5E series is a large-sized display, the product still has a slim depth, a feature that allows easy installation by using less space. An immersive view is attained while maintaining a sleek look.
Detachable Logo & Built-in Speaker<br>1
PANEL
  • Screen Size
    86″
    Resolution
    3,840 x 2,160 (UHD)
  • Brightness(Typ.,cd/m²)
    500
CONNECTIVITY
  • Input
    HDMI (3), DP, DVI-D, Audio, USB 2.0 (2)
    Output
    DP, Audio (Off/Fixed/Variable)
  • External Control
    RS232C In/out (4 Pin Phone-Jack), RJ45 (LAN) In, IR In
MECHANICAL SPECIFICATION
  • Bezel Width
    14.3 mm (Even) * Off-Bezel
    Monitor Dimension (W × H × D)
    1,926.2 x 1,097.2 x 60.6 mm (without Handle and Logo)
  • Weight (Head)
    49 kg
    Carton Dimensions (W × H × D)
    2,073 x 1,260 x 292 mm
  • Packed Weight
    61.1 kg
    VESA™ Standard Mount Interface
    600 x 400 mm
ENVIRONMENT CONDITIONS
  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %
POWER
  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
POWER CONSUMPTION
  • Typ. / Max.
    215 W / 280 W
    Smart Energy Saving
    151 W
CERTIFICATION
  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / N/A
MEDIA PLAYER COMPATIBILITY
  • OPS Type Compatible
    Yes
SOFTWARE COMPATIBILITY
  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control/Control+
ACCESSORY
  • Basic
    Remote Controller, Power Cord, QSG, DP Cable (1.8M), Regulation Book, Phone to RS232C Gender
    Optional
    OPS Kit (KT-OPSF), Wall Mount (LSW640A/B)

Brand

LG
