LOGITECH CAT5E Kit for Logitech Tap (952-000019) – 2 Years Warranty

SIMPLIFIED CABLING FOR LOGITECH TAP

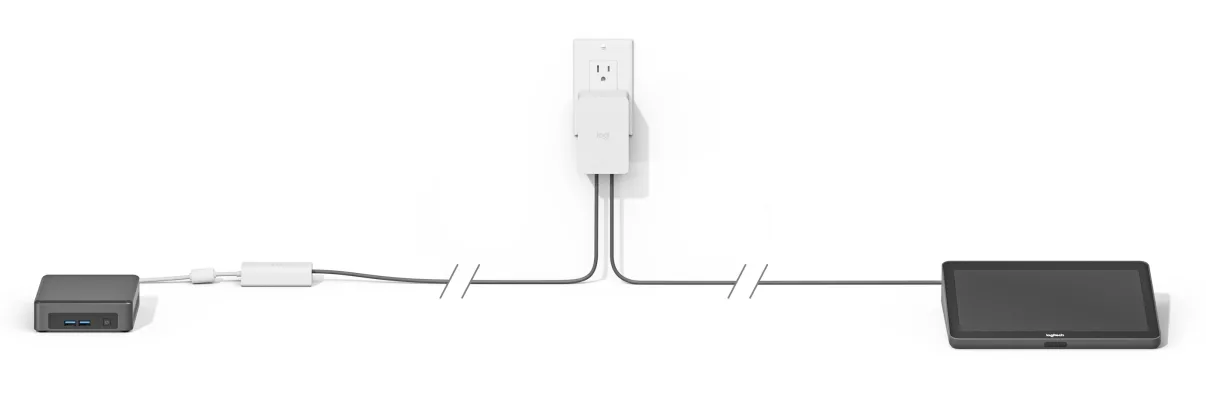

Now, you can locate Logitech Tap nearly anywhere in your meeting rooms. With the Cat5e Kit, connect Tap up to 40 meters away from the meeting room computer with data and power carried over category cable.

FLEXIBLE CABLING

Use the 10 meters of cable included with the Cat5e Kit or supply your own cabling for runs of up to 40 meters. Cat5e allows for precise cable lengths, reducing clutter beneath tables.

SPECS & DETAILS

SUPPORT

DIMENSIONS

Logitech Tap Receiver

Height: 29 mm

Width: 83 mm

Depth: 85 mm

Dongle Transceiver (Dongle)

Height: 22.5 mm

Width: 31.0 mm

Depth: 83.7 mm

Cable length: 500 mm

Power supply

Height: 91.0 mm

Width: 60.2 mm

Depth: 36.3 mm 1Without Plug

Included Cabling (Two Cables)

Length: 2.97 m

Length: 7.0 m

SYSTEM REQUIREMENTS

Meeting Room Equipment

Touch Controller: Logitech Tap

Meeting Room Computer: Windows® 10 64-bit or Chrome OS™ 80
or higher with USB 2.0 port or higher

Customer-Supplied Cabling

Cable Type: Cat5e or higher (up to 40 meters in total
length)

TECHNICAL SPECIFICATIONS

General

Cable Type: Cat5e SF/UTP AWG26 or higher

Power supply: 100-240V auto-switching power supply with
international adaptor set

Compatibility

Touch Controller: Logitech Tap

Meeting Room Computer: USB 2.0 port or higher

PACKAGE CONTENTS

Logitech Tap Receiver

Dongle Transceiver

100-240v Power Supply with International

International Adaptor Set

9.74 ft (2.97 m) Cat5e Cable

22.96 ft (7.0 m) Cat5e Cable

Documentation

WARRANTY INFORMATION

2-Year Limited Hardware Warranty

PART NUMBER

952-000019
