Samsung 24″ inch LH24KMA-TBGC Full HD Samsung Kiosk

  • Compact and modern design
  • Modular functionality to support any payment type
  • Versatile solution for any scenario

Designed for every business, delivering peace of mind

Samsung’s latest technology delivers a new standard of kiosk, offering a compact, space-saving design, advanced security provided by Knox, and easy management and maintenance for reliable performance. Built based on Samsung’s SoC(System on Chip) technology, it is the ideal solution for any business.

Designed for every business, delivering peace of mind

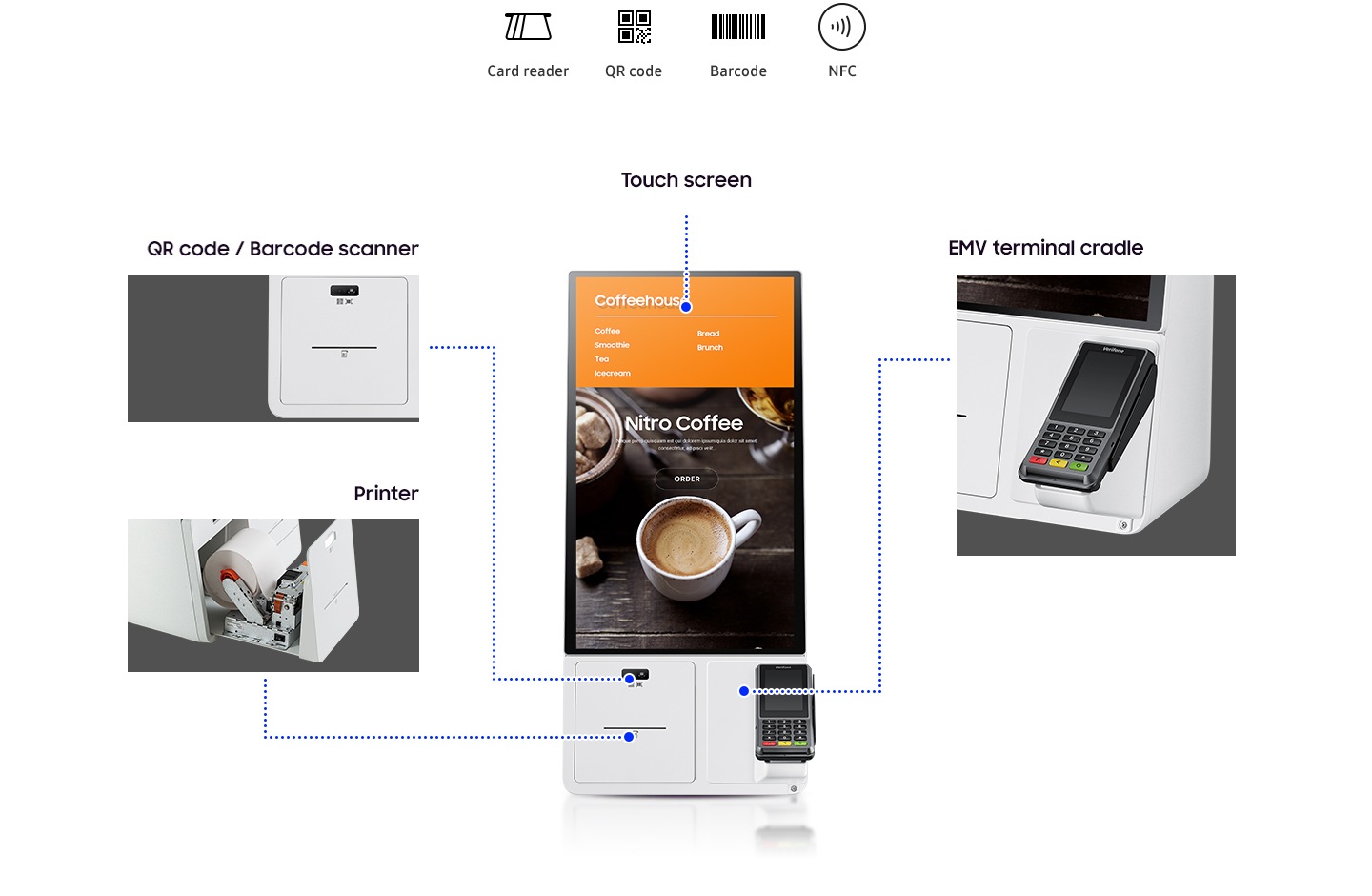

Modular functionality to support any payment type

The Samsung Kiosk adopts a modular design which provides a variety of payment options including credit card, barcode, QR code and NFC, along with a built-in printer. This means it needs no additional peripherals for an advanced, all-in-one solution that also makes maintenance fast and easy.

Modular functionality to support any payment type

*Samsung Kiosk supports a fully integrated EMV cradle for a Verifone terminal (P400) which varies by region and country.*EMV terminal must be purchased separately.

Compact and modern design

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

Compact and modern design

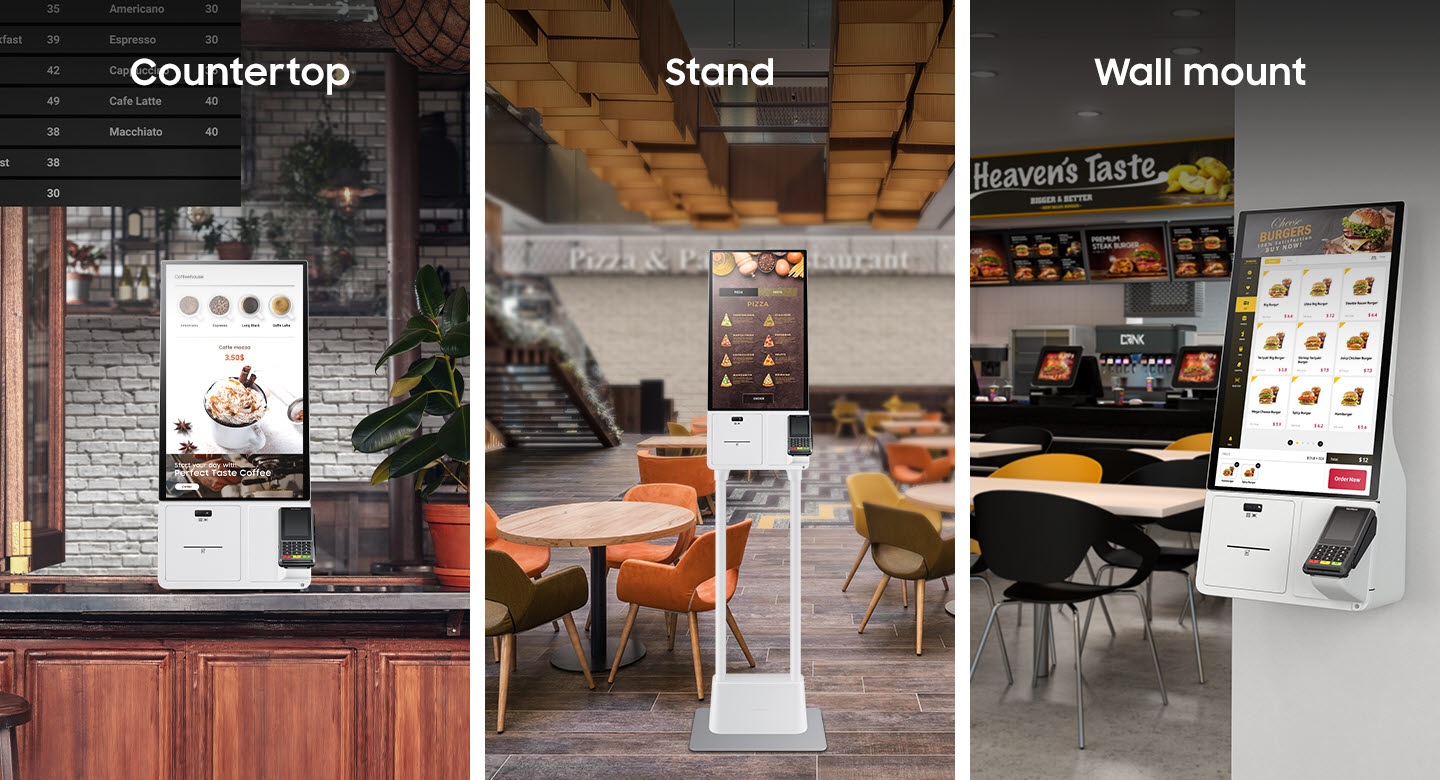

Versatile solution for any scenario

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.

Versatile solution for any scenario

* Wall mount must be purchased separately

Keep the screen clean

Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.

* To perform its antibacterial function, this product has been treated with the biocidal substance Zinc Pyrithione.
* Antibacterial property does not completely protect users against bacteria and provides no protection against viruses including Covid-19.
* Antimicrobial Coating is on surface of screen only and the effect may vary depending on conditions of use.

Keep the screen clean

Minimize accidents and risks

Shatterproof protection

Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.

Minimize accidents and risks

Powerful solution with no PC needed

Samsung Kiosk is built based on Samsung’s proven SoC(System on Chip) technology. This enables the kiosk to function without the need for an external PC, further highlighting Samsung’s leadership in the PC-less solution space, while delivering powerful and reliable technology.

Powerful solution with no PC needed

Powerful, protective security

The kiosk uses three-layer security protection powered by Samsung Knox technology which supports application development on the secured platform, the protection of important customer data and effective minimization of security attacks for a powerful, comprehensive security solution.

Powerful, protective security

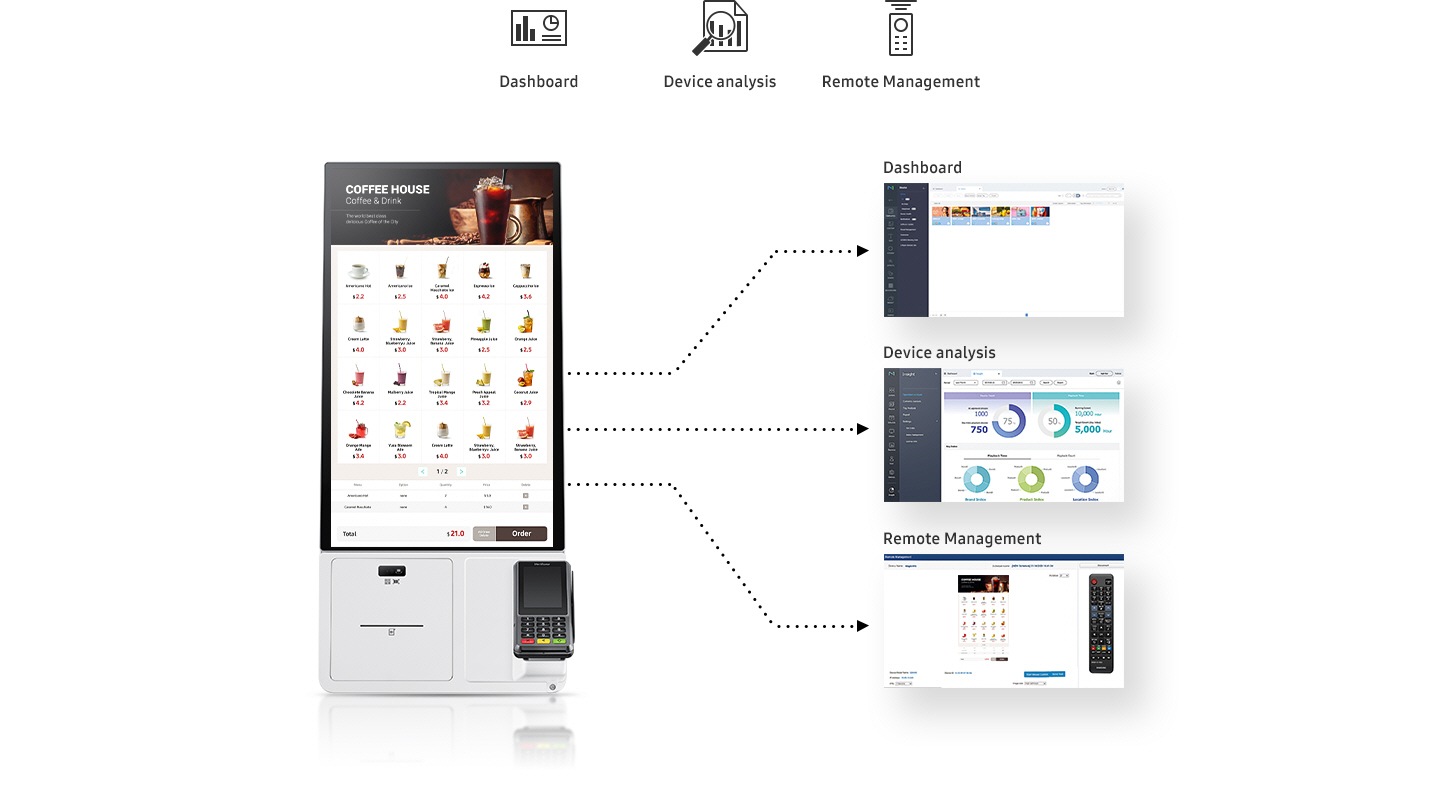

Display monitoring and management

Samsung Kiosk provides a proven remote monitoring solution, allowing managers to view display information, check peripheral devices and resolve errors. Remote control capabilities also enable the diagnosis of issues and remote control of essential functions such as switching the screen on and off.

Display monitoring and management

* MagicINFO license must be purchased separately for use of management solution.* Please refer to or for system requirement of MagicINFO.



  • Display23.8″
  • Resolution1,920 x 1,080
  • Brightness (Typical)250cd(Typ, w/o glass)
  • Panel TypeADS
  • Dimension547.9 x 334.4 x 48.8 mm
  • Weight4.4 kg


  • Diagonal Size23.8″
  • Panel TypeADS
  • Resolution1,920 x 1,080
  • Pixel Pitch (HxV)0.2745 x 0.2745 mm
  • Brightness (Typical)250cd(Typ, w/o glass)
  • Contrast Ratio1000:1(without glass)
  • Viewing Angle (H/V)178/178
  • Response Time14ms
  • Color Gamut72%
  • Glass Haze25 (w/o glass)
  • H-Scanning Frequency48~75KHz
  • Maximum Pixel Frequency594MHz
  • V-Scanning Frequency56~84.5Hz
  • Contrast Ratio (Dynamic)Mega
  • Operation Time Support16/7


  • HDMI In1
  • USB1
  • RS232 InYes
  • RJ45 InYes
  • WiFiYes


  • Power SupplyAC100-240V 50/60Hz
  • Power Consumption (On Mode)49.5 W
  • Power Consumption (Sleep Mode)0.5 W


  • Set Dimension (WxHxD)547.9 x 334.4 x 48.8 mm
  • Package Dimension (WxHxD)620 x 419 x 122 mm


  • Set Weight4.4 kg
  • Package Weight5.4 kg

Operation Conditions

  • Temperature0℃~40℃
  • Humidity10 ~ 80%, non-condensing

Mechanical Specification

  • Bezel WidthUD: 17.9 / LR: 9.4
  • Frame MaterialNon-Glossy

Optional Feature

  • TouchYes
  • StandYes


  • Energy Efficiency ClassN/A


  • Touch TechnologyCapative

Certification and Compliance

  • EMCClass A FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
  • SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
