Samsung 24KMC 24″ Interactive Display KM24C-5 Kiosk with Windows OS LH24KMC-5BGC LH24KMC5BGC

  • Modular functionality to support any payment type
  • All-in-one solution with upgraded compatibility
  • Compact and modern design

Self-service out of the box with Windows OS

Introducing Samsung Kiosk with Windows OS: a compact, eye-catching kiosk to provide reliable performance in any business location. With built-in Windows 10 IoT Enterprise OS, it supports enhanced compatibility with various 3rd party devices and services to integrate business operations.

Self-service out of the box with Windows OS

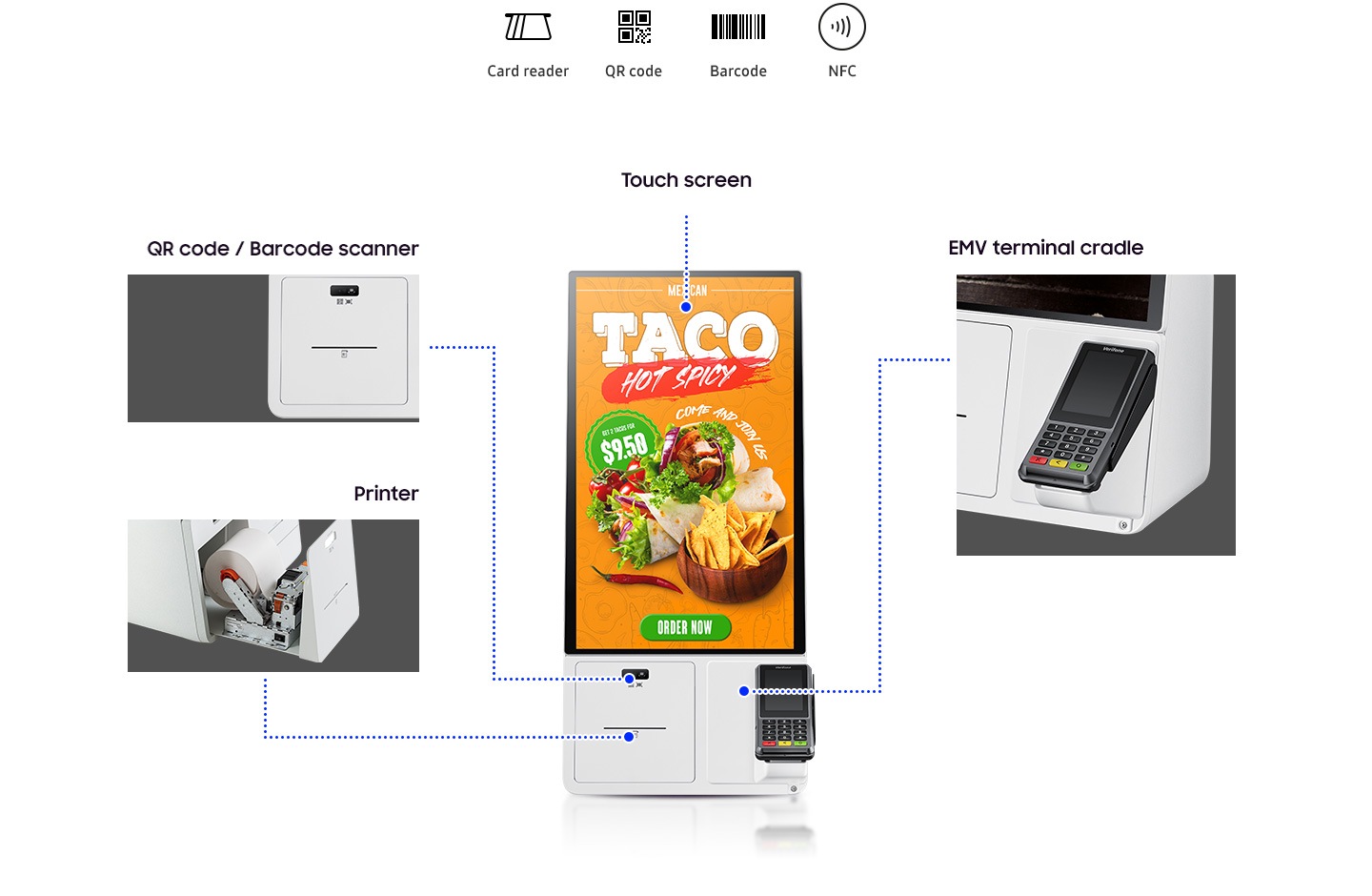

Modular functionality to support any payment type

Boost every customer experience with the intuitive all-in-one payment and ordering system with no additional peripherals needed. Adopting a modular design, Samsung Kiosk offers a variety of customer payment options including credit card, barcode, QR code and NFC, along with a built-in printer.

Modular functionality to support any payment type

* Samsung Kiosk supports a fully integrated EMV cradle for a Verifone terminal (P400) which varies by region and country.

All-in-one solution with upgraded compatibility

Samsung Kiosk operating on Windows is an all-in-one solution without the need for an external PC. With Windows 10 IoT Enterprise OS, it enables flexible connection with versatile devices and services, making it suitable for a wide array of business use cases.

All-in-one solution with upgraded compatibility

Robust yet stable performance

Powered by 11th Gen Intel® Core™ Processor, Samsung Kiosk built on Windows OS features high performance computing power for flexible, stable, and enhanced capabilities that deliver amazing and robust experiences to users in any business environment.

Robust yet stable performance

* Embedded processor varies by model.

Compact and modern design

Samsung Kiosk is composed of a single display part and connection box, along with an optional stand. The design enables clean and convenient cable management while the grey-white color and simple stand means the kiosk blends perfectly into any store interior with a stylish look.

Compact and modern design

Versatile solution for any scenario

For enhanced flexibility in any business environment, Samsung’s new kiosk offers three installation types – countertop, floor stand and wall-mounting – along with hidden cabling and power strip, with no external PC needed either for optimized space saving.

Versatile solution for any scenario

Keep the screen clean

Thanks to an Antimicrobial Coating, Samsung Kiosk inhibits microbial growth to help protect against certain bacteria. This enables customers to stay focused on what’s on the screen with peace of mind.

* To perform its antibacterial function, this product has been treated with the biocidal substance Zinc Pyrithione.
* Antibacterial property does not completely protect users against bacteria and provides no protection against viruses including Covid-19.
* Antimicrobial Coating is on surface of screen only and the effect may vary depending on conditions of use.

Keep the screen clean

Minimize accidents and risks

Shatterproof protection

Samsung understands that accidents happen. To protect students and educators, the Samsung Kiosk screen is wrapped in a proprietary shatterproof film, ensuring the screen stays intact in the event of a break.

Minimize accidents and risks


  • Display24″
  • Panel TypeADS
  • Resolution1,920 x 1,080
  • Brightness (Typ)250cd(Typ, w/o glass)
  • Dimension547.9 x 334.4 x 48.8 mm
  • Weight4.3 kg


  • Diagonal Size24″
  • Panel TypeADS
  • Resolution1,920 x 1,080
  • Pixel Pitch (HxV)0.2745 x 0.2745 mm
  • Brightness (Typ)250cd(Typ, w/o glass)
  • Contrast Ratio1000:1(without glass)
  • Viewing Angle (H/V)178/178
  • Response Time14ms
  • Color Gamut72%
  • Glass Haze25 (w/o glass)
  • H-Scanning Frequency56~84.5KHz
  • Maximum Pixel Frequency148.5MHz
  • V-Scanning Frequency48~75Hz
  • Contrast Ratio (Dynamic)Mega
  • Operation Time Support16/7


  • USB1


  • Power Consumption (On Mode)88 W
  • Power Consumption (Sleep Mode)0.5 W


  • Set Dimension (WxHxD)547.9 x 334.4 x 48.8 mm
  • Package Dimension (WxHxD)620 x 419 x 122 mm


  • Set Weight4.3 kg
  • Package Weight5.7 kg

Operation Conditions

  • Temperature0℃~40℃
  • Humidity10 ~ 80%, non-condensing

Mechanical Specification

  • Bezel WidthUD: 17.9 / LR: 9.4
  • Frame MaterialNon-Glossy

Optional Feature

  • TouchYes
  • StandYes


  • OS VersionWindows 10 IoT Enterprise
  • Flash Memory Size256GB


  • Touch TechnologyCapative

Certification and Compliance

  • EMCClass A FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
  • SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
