Samsung 37″ LH37SHR-BBGB SHR Series Stretched Widescreen Display


SHR Series 37″

SH37R – Edge-Lit LED Stretched Widescreen Display for Business

Wider display, wider audience.


  • Stretched resolution
  • 24/7 operation
  • 700nit high brightness

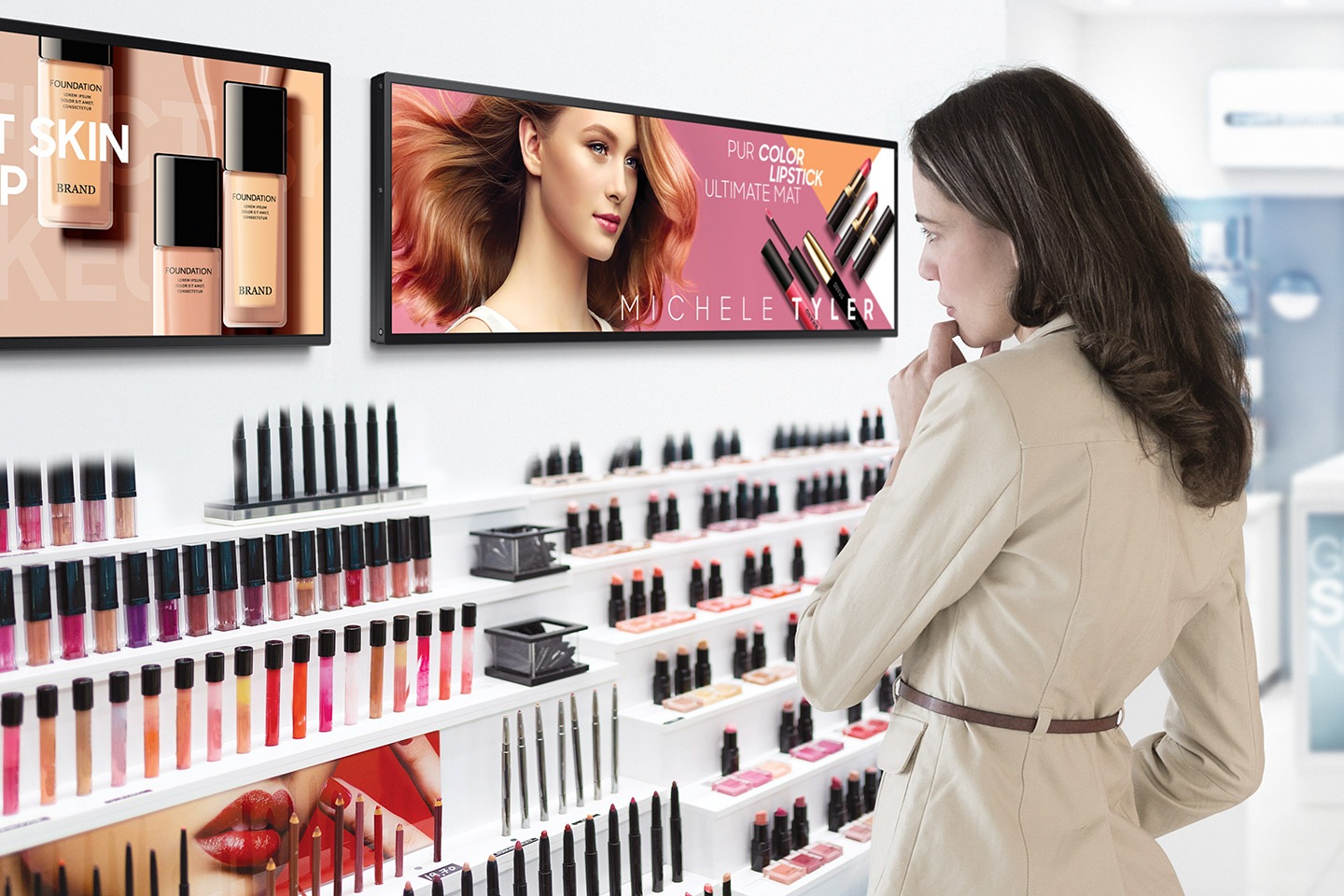

Engage customers with versatile display

With flexibility in installation orientation and powerful visual technology that delivers truly eye-catching images in a slim design – Samsung SHR-B Stretch Displays are the ideal and versatile display solution to meet virtually any need.Engage customers with versatile display

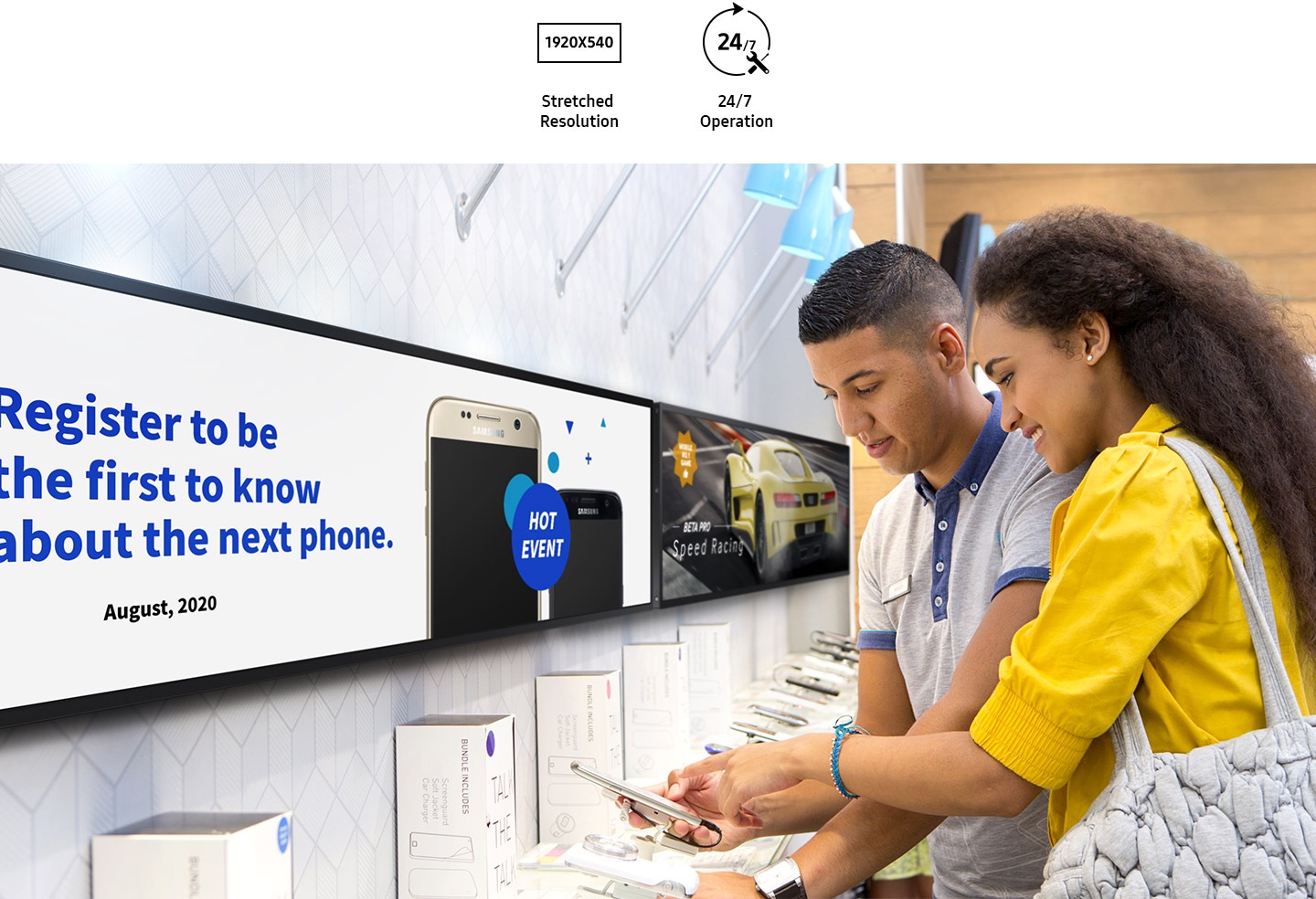

Maximise space and optimise content

Stretch display

Make the most of your space with SHR-B Stretch Displays. 16:4.5 wide screen stretched display allows you to maximise space and effectively deliver content – even in small, narrow spaces.Maximize space and optimize content

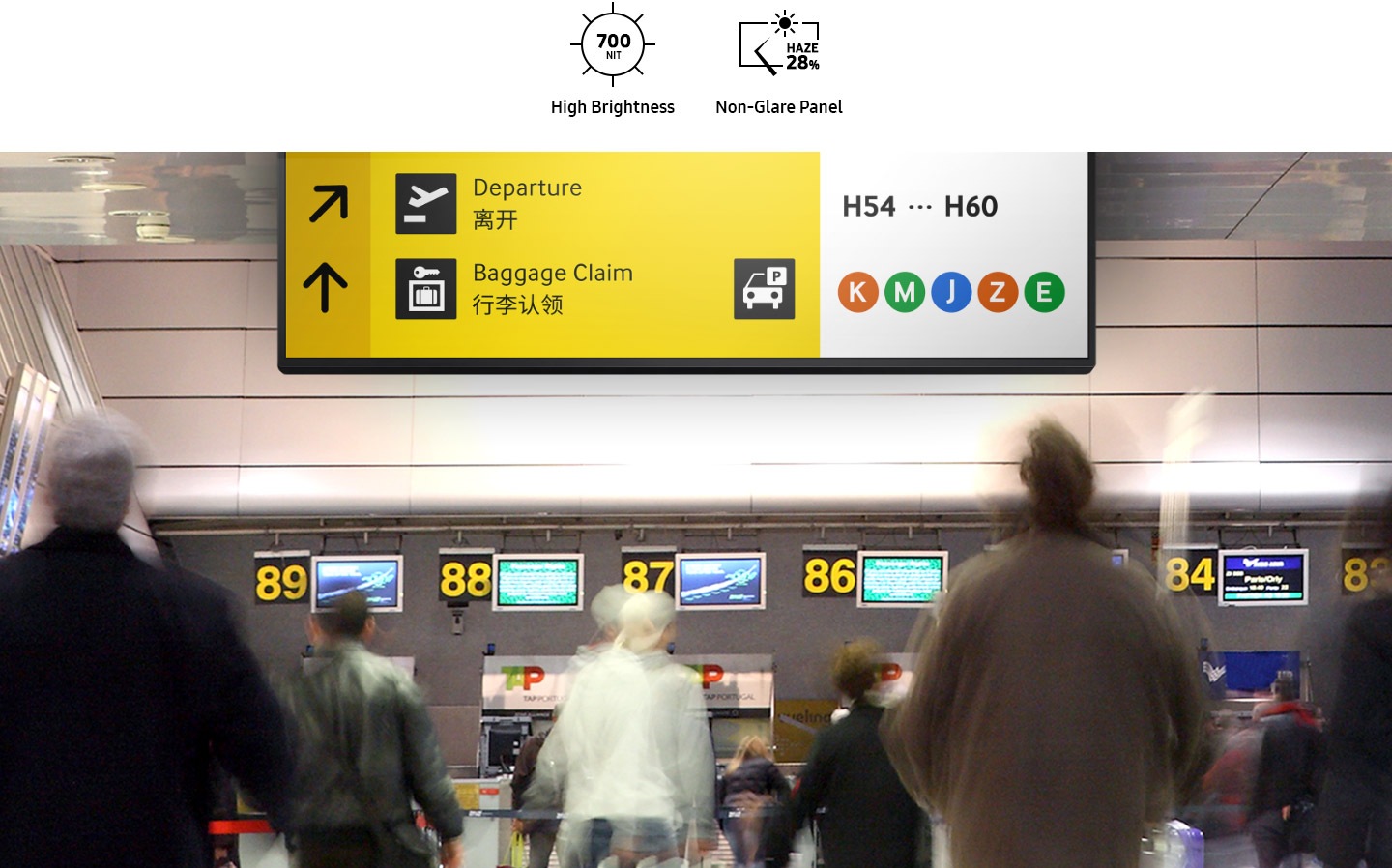

Deliver sharp images in various lighting conditions

700nit brightness

Deliver vibrant, realistic images and offer an incredible visual experience to your customers. Featuring brightness levels of up to 700nit, these displays deliver clear, rich images in a wide variety of lighting conditions.Deliver sharp images in various lighting conditions

Maximise available space

Slim depth

Featuring a slim profile with a depth of only 44.8mm, the SHR-B Stretch Display helps you to maximise available space. This enables the display to be installed in areas where space is limited.Maximise available space

Powerful, all-in-one solution

Tizen 4.0

SSSP is an all-in-one solution that helps simplify installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.Powerful, all-in-one solution

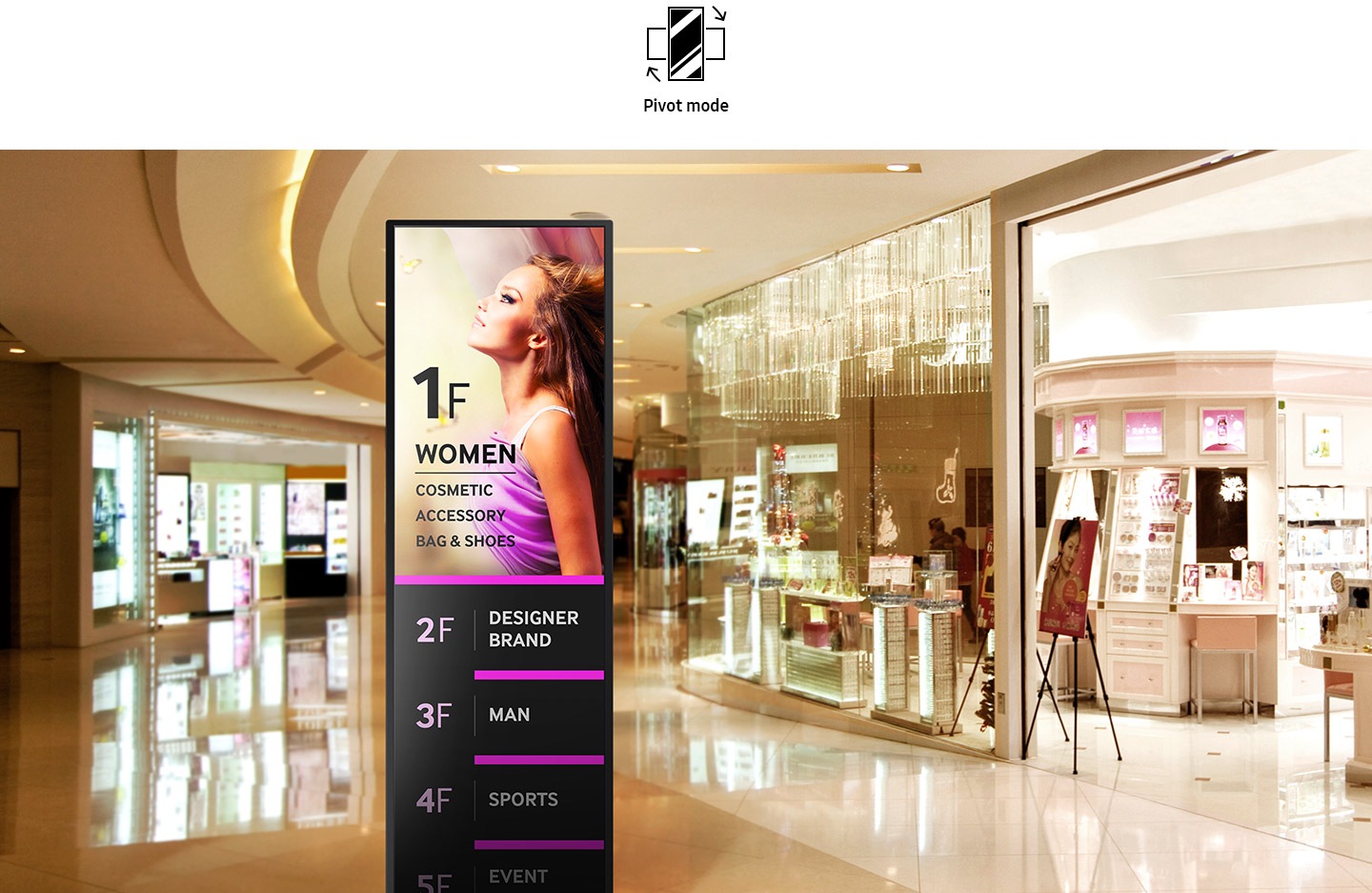

Customise content from portrait to landscape

Pivoting functionality

With pivoting functionality along with image rotation software that can change image orientation from portrait to landscape, enjoy display flexibility. Images do not require rotation in image editing software to make them appear correctly in a different orientation.

Customize content from portrait to landscape

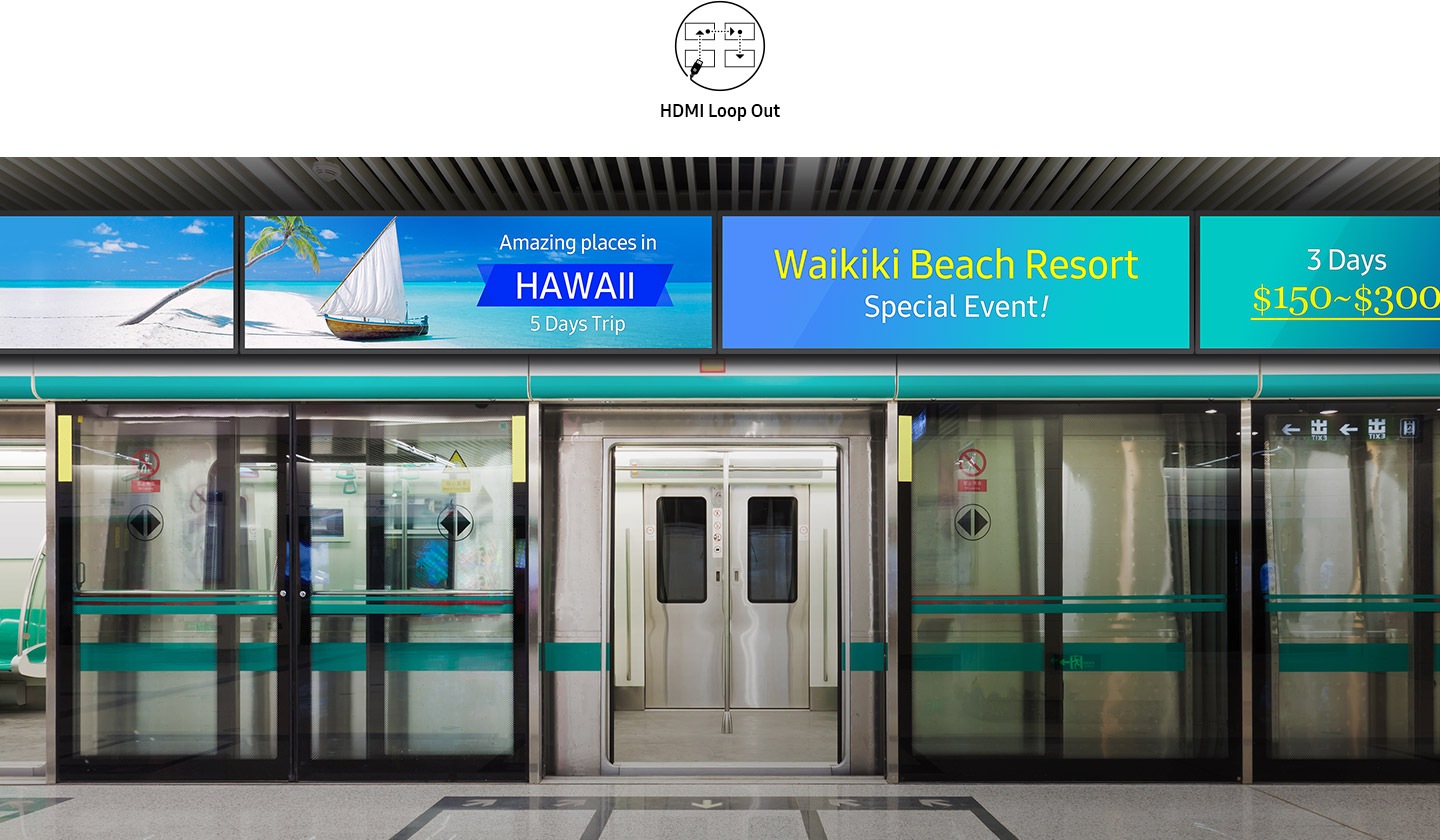

Daisy chain multiple displays

Display UHD Content

SHR-B Stretch Displays provide an impressive 4K UHD viewing experience, when four compatible units are combined due to daisy chain technology. Deliver eye-catching messages in incredible clarity for great impact.

Daisy chain multiple displaysDaisy chain multiple displays



  • Diagonal Size37″
  • Panel TypeVA
  • Resolution1,920 x 540
  • Pixel Pitch (HxV)0.47(H) x 0.47(V)
  • Brightness (Typ)700 nit
  • Contrast Ratio⁵4,000:1
  • Viewing Angle (H/V)178/178
  • Response Time6.5ms
  • Color Gamut0.72 %
  • Glass Haze0.28 %
  • H-Scanning Frequency33.6 ~ 36.6KHz
  • Maximum Pixel Frequency48MHz
  • V-Scanning Frequency47 ~ 63Hz
  • Dynamic Contrast RatioN/A


  • HDMI In2
  • DP InYes
  • DVI InN/A
  • Version of HDMI2.0
  • Version of DP1.2
  • Version of HDCP2.2
  • Tuner InN/A
  • USB1
  • Component InN/A
  • Composite InN/A
  • RGB InN/A
  • IR InYes
  • HDBaseT InN/A
  • Audio InNo
  • Audio OutStereo Mini Jack
  • Video OutYes
  • Power OutN/A
  • RS232 InYes
  • RS232 OutYes
  • RJ45 InYes
  • RJ45 OutN/A
  • WiFiYes
  • 3G DongleN/A
  • BluetoothN/A


  • Power SupplyAC100-240V 50/60Hz
  • Power Consumption (Off Mode)N/A
  • Power Consumption (On Mode)70 W
  • Power Consumption (Sleep Mode)0.5 W

Set Dimension (WxHxD)

  • Set Dimension (WxHxD)923.3 x 277.6 x 44.8 mm
  • Package Dimension (HxWxD)1112 x 363 x 122 mm


  • Net Weight6.3 kg
  • Package Weight8.8 kg

Operation Conditions

  • Temperature0~40℃
  • Humidity10 ~ 80%, non-condensing

Mechanical Specification

  • VESA Mount400 x 200 mm
  • Bezel Width9.8(Top/Bottom), 7.9(Left/Right)
  • Frame MaterialNon-Glossy

General Feature

  • External Memory SlotN/A

Optional Feature

  • MountNo
  • StandNo


  • OS VersionTizen 4.0
  • Flash Memory Size8GB


  • Energy Efficiency ClassN/A

Certification and Compliance

  • EMCClass A
  • Safety60950
