Samsung 46″ LH46VMR-UBGB VM46R-U Series Video Wall Digital Display

RM6,793.00

Video Wall VM46R-U Series 46”

LH46VMRUBGBXUE

  1. Built in SOC Video Wall
  2. 24/7 Operation
  3. 3.5mm Ultra Narrow bazel
SKU: LH46VMR-UBGB
Category:

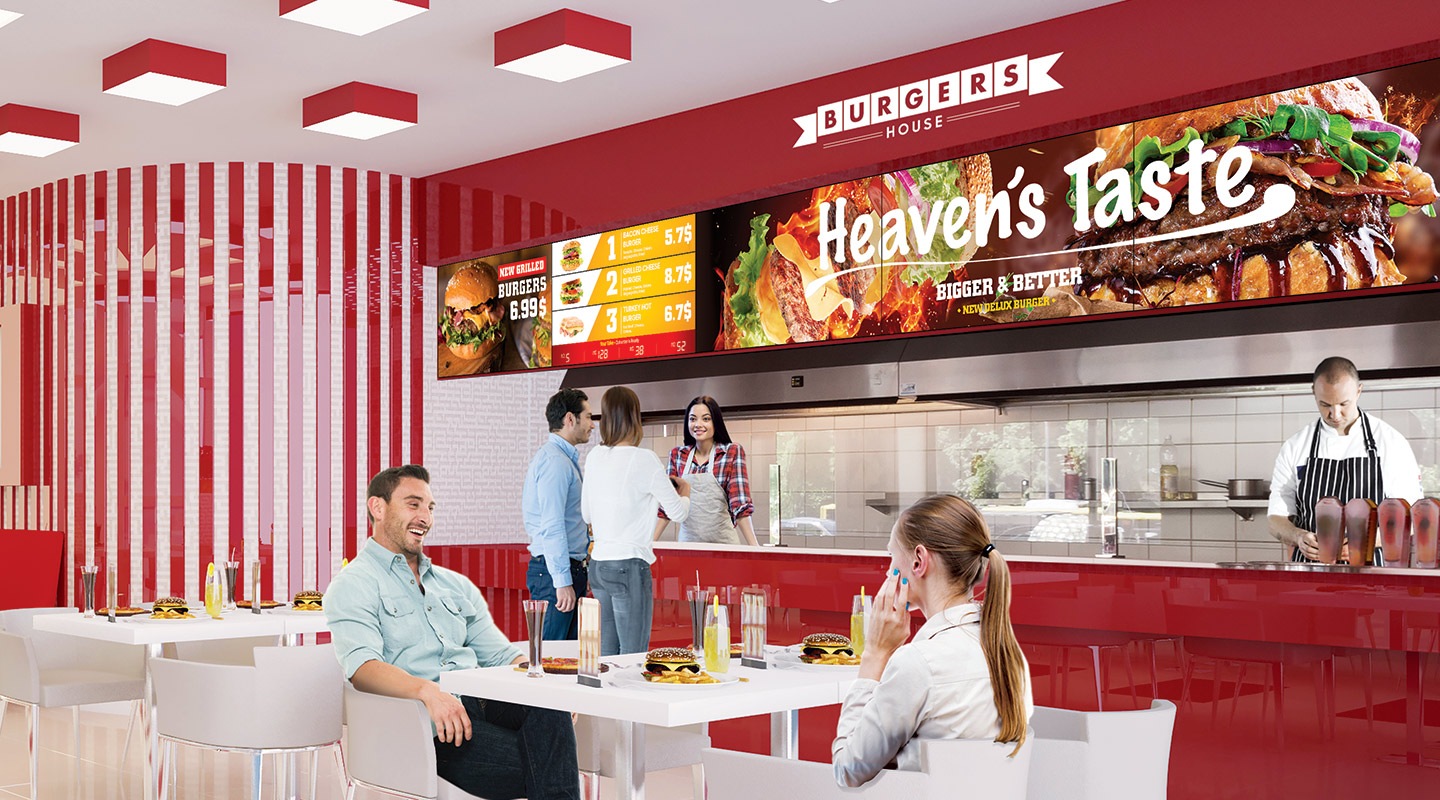

Flexible and dynamic content options with powerful SoC embedded video wall

Samsung’s VMR-U is a powerful and efficient SoC embedded video wall that can easily transform screens from displaying standalone content to operating as one cohesive unit without the need for additional hardware. The VMR-U is the best solution for capturing and keeping your customer’s attention.

Flexible and dynamic content options with powerful SoC embedded video wall

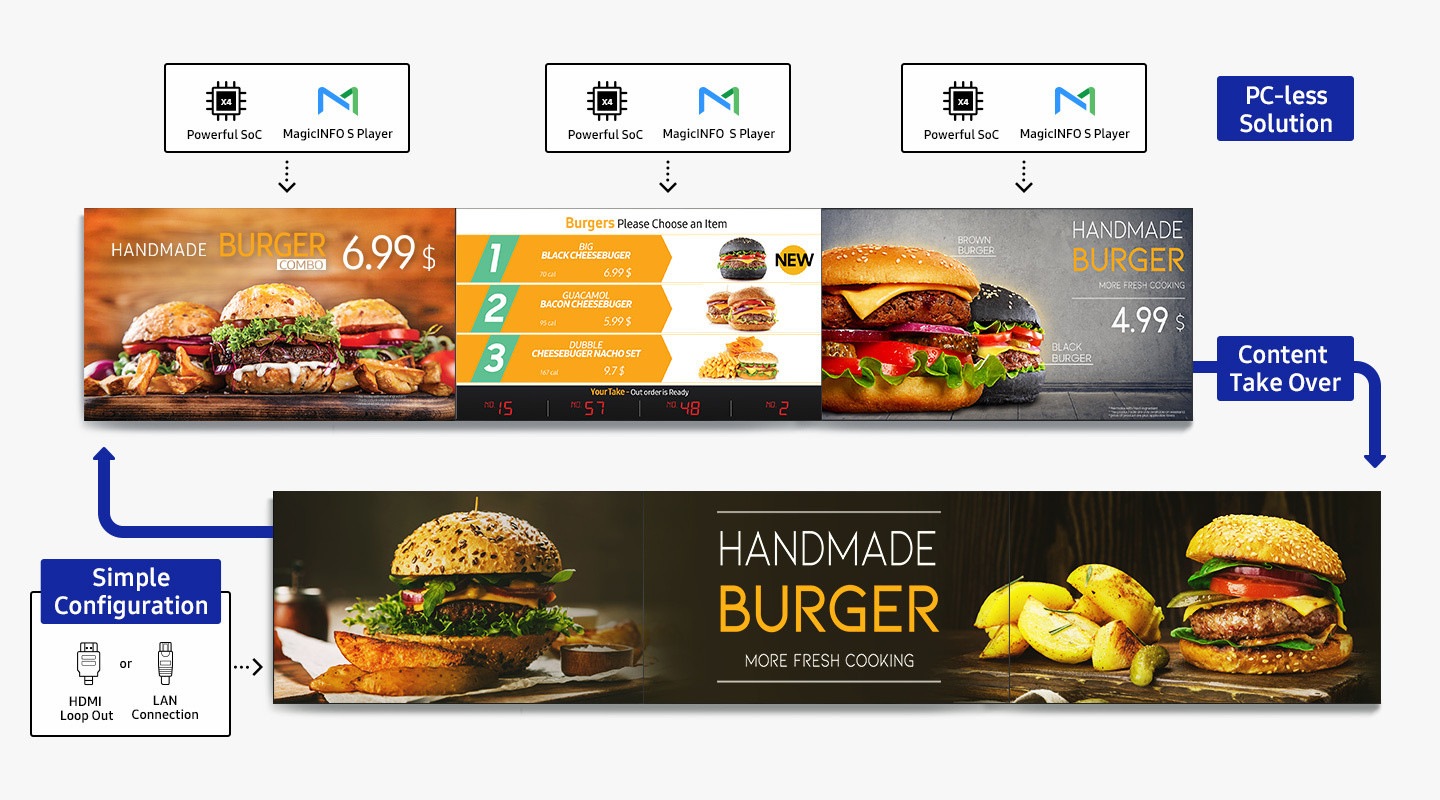

System-on-chip (SoC)

The VMR-U features embedded system-on-chip (SoC) technology, allowing screens to easily switch between displaying individual content and operating together to display a cohesive image. This can be done with a simple HDMI loop out or LAN connection, eliminating the need for an external media player.

System-on-chip (SoC)

Samsung SMART Signage Platform (SSSP)

Samsung’s SMART Signage Platform (SSSP) powered by Tizen 4.0, supports a web friendly environment for development through reinforced compatibility with web formats and standards. It allows for effortless, real-time content updates that are necessary in this fast-paced industry.

Samsung SMART Signage Platform (SSSP)

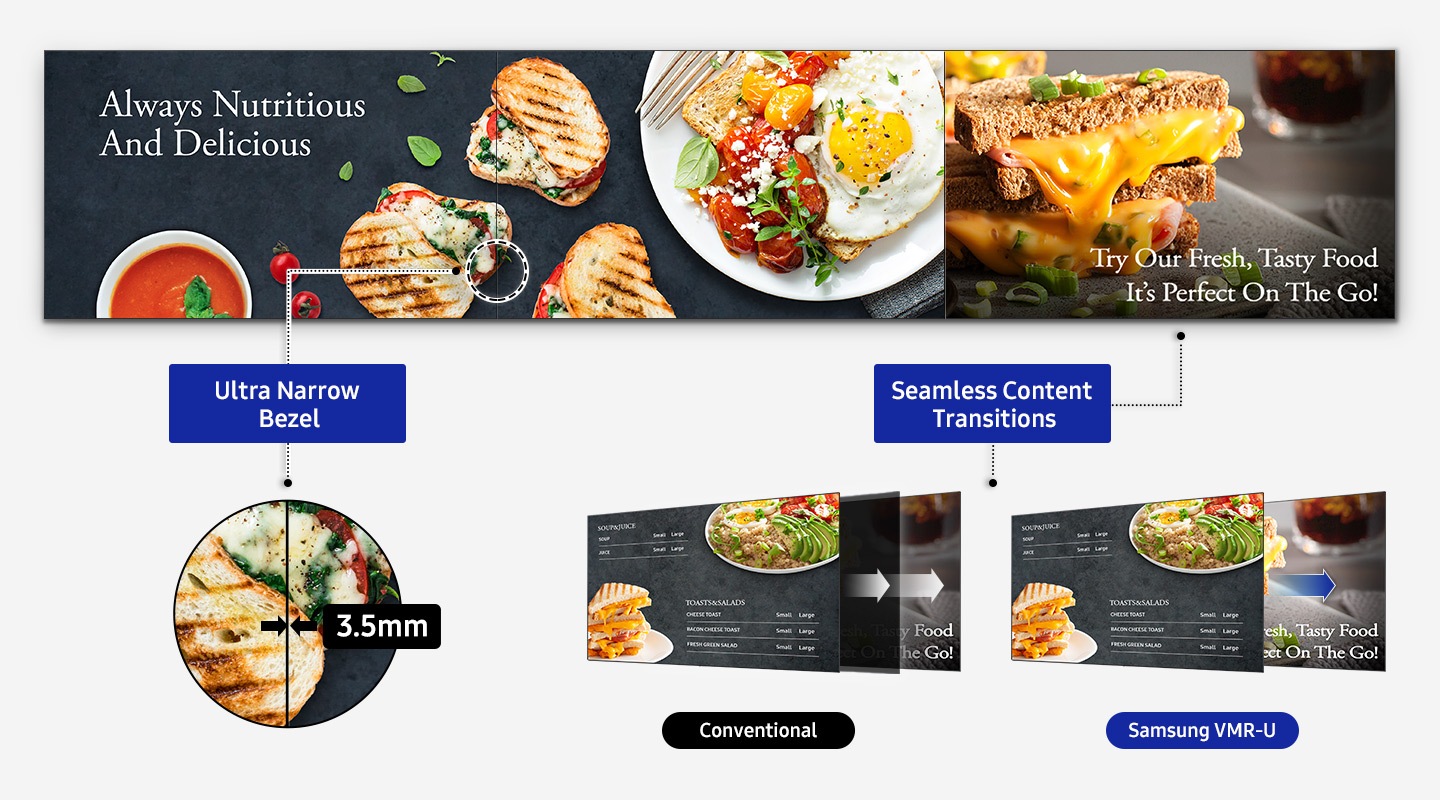

Seamless content

The VMR-U delivers seamless content with its ultra-narrow bezel, while MagicINFO S Player’s powerful performance creates smooth transitions between content with no lag, black screens or gaps during playback.

Seamless content

* Conventional display example represents operation without Tizen OS.
* Black screen may briefly appear between images if content is encoded at a different frame rate.

24/7 operation

Designed to maintain performance in various indoor environment conditions, The VMR-U enables vivid and reliable content delivery for every business need with continuous 24/7 operation.

24/7 operation

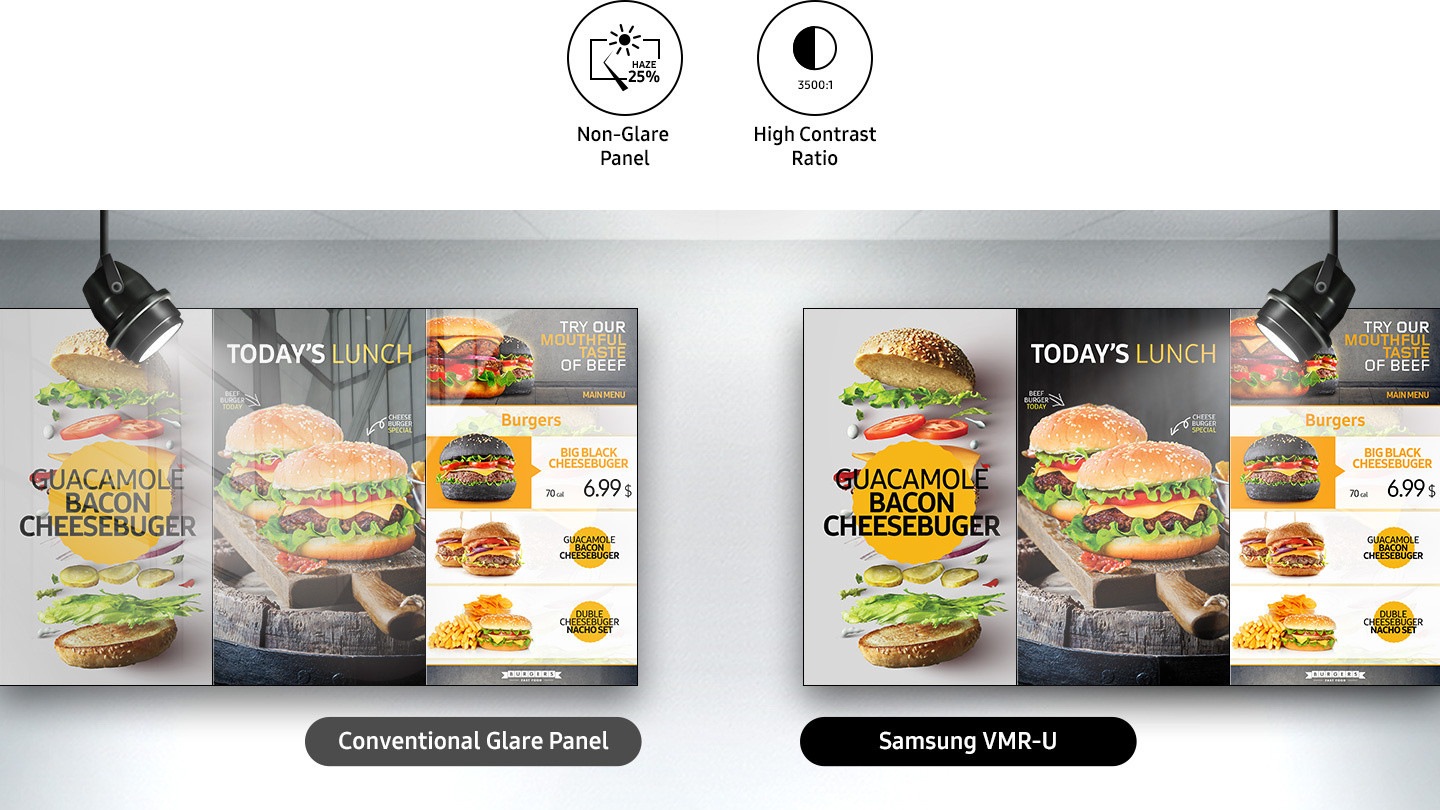

Non-glare panel

The VMR-U features a non-glare panel that evenly distributes light across the screen to maintain content vibrancy and accuracy, with a high contrast ratio to display vivid and memorable content.

Non-glare panel

Durable and reliable

Each VMR-U display features a reinforced panel for long-term performance. This superior panel prevents screen darkening, light leakage and picture deterioration.

Durable and reliable

Comprehensive calibration

Samsung’s multi-step factory calibration process tunes video walls to uniform brightness and color throughout multiple displays. In addition to rigorous factory calibration, users can also manage brightness and color uniformity with Samsung’s Color Expert Pro, a powerful free software program.

Comprehensive calibration

Color Expert Pro Mobile

Samsung’s Color Expert Pro Mobile solution provides a quick and easy video wall calibration through a mobile camera. With the solution’s intuitive UI, even non-expert users can adjust up to 5×5 video wall’s white balance simultaneously without the need for additional equipment.

Color Expert Pro Mobile
Specification
  • Display
    • Diagonal Size46″
    • Panel TypeSlim Direct
    • Resolution1,920 x 1,080
    • Pixel Pitch (HxV, mm)‎0.53×0.53‎
    • Brightness (Typical, cd/m2)Max 500
    • Contrast Ratio3,500:1
    • Viewing Angle (H/V)178/178
    • Response Time8ms
    • Color Gamut‎0.72%‎
    • Glass Haze‎25%‎
    • H-Scanning Frequency60kHz ~ 69.75kHz
    • Maximum Pixel Frequency152.5MHz
    • V-Scanning Frequency48Hz ~ 62.5Hz
    • Dynamic Contrast RatioMega



  • Connectivity
    • HDMI In2
    • DP In1
    • USB1
    • Component InNo
    • Composite InNo
    • Audio InNo
    • Audio OutStereo Mini Jack
    • Video OutYes
    • Power OutNo
    • RS232 InYes
    • RS232 OutYes
    • RJ45 InYes
    • RJ45 OutNo
    • IR InYes
    • HDBaseT InNo



  • Power
    • Power SupplyAC 100 to 240 VAC (60 / 50Hz)
    • Power Consumption (Off Mode, W)‎0.00‎
    • Power Consumption (On Mode, W)‎143‎
    • Power Consumption (Sleep Mode, W)‎0.5‎



  • Dimension
    • Set Dimension (WxHxD, mm)‎1022.1 x 576.6 x 97.4‎
    • Package Dimension (WxHxD, mm)‎1153 x 724 x 295‎



  • Weight
    • Set Weight (kg)‎15.9‎
    • Package Weight (kg)‎21.7‎



  • Mechanical Specification
    • VESA Mount (mm)‎600 x 400‎
    • Bezel Width (mm)2.3mm(U/L), 1.2mm(R/B)
    • Frame MaterialGlossy



  • Operation Conditions
    • Temperature0℃~ 40℃
    • Humidity10 ~ 80%, non-condensing



  • General Feature
    • External Memory SlotNo



  • Optional Feature
    • MountYes
    • StandNo



  • Internal Player (MagicInfo)
    • MagicInfo Daisychain Videowall SupportYes



  • Eco
    • Energy Efficiency ClassN/A



  • Certification and Compliance
    • EMCFCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
    • SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE

Brand

Samsung
