Samsung 55″ LH55OMN-ESGB OMN OM55N-S Series Semi Outdoor Digital Signage

RM21,000.00

OM55N-S

Promote content with exceptional clarity in any storefront window

  • Ultra-high brightness emphasizing content, regardless of the lighting conditions
  • Slim and contemporary design that seamlessly integrates into any display window
  • Robust durability with IP5X-validated dust protection and functionality that mitigates overheating
  • Easy content management with a built-in management solution

Features

Promote content in any storefront window

Samsung’s OMN-S series was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.
Promote content in any storefront window

Foster brilliant presentation for all

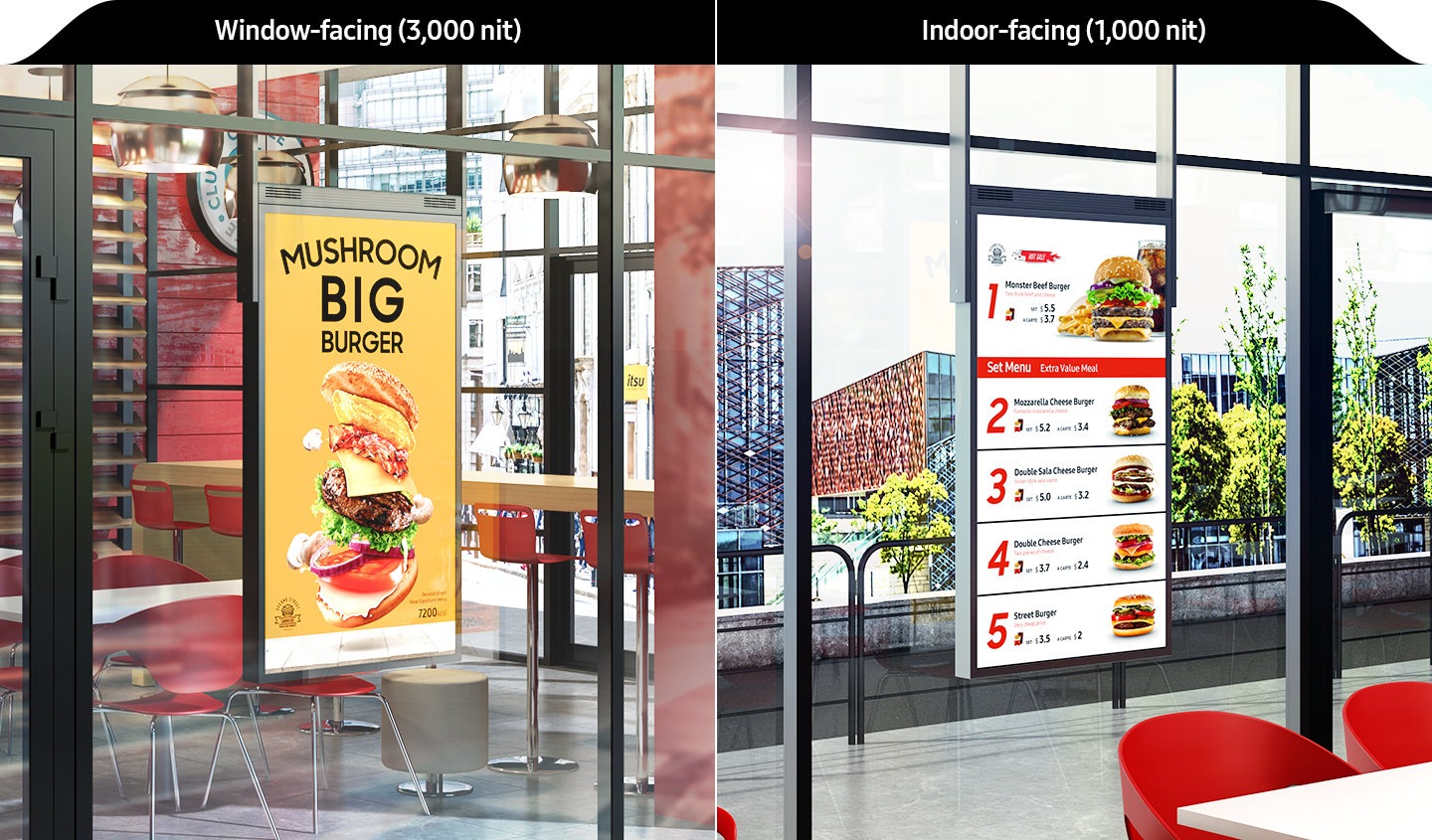

Even in direct sunlight, the OMN-S series delivers exceptional picture quality with optimal brightness and high contrast ratio for an uncompromised customer viewing experience.Foster brilliant presentation for all

Modernize space with slim design

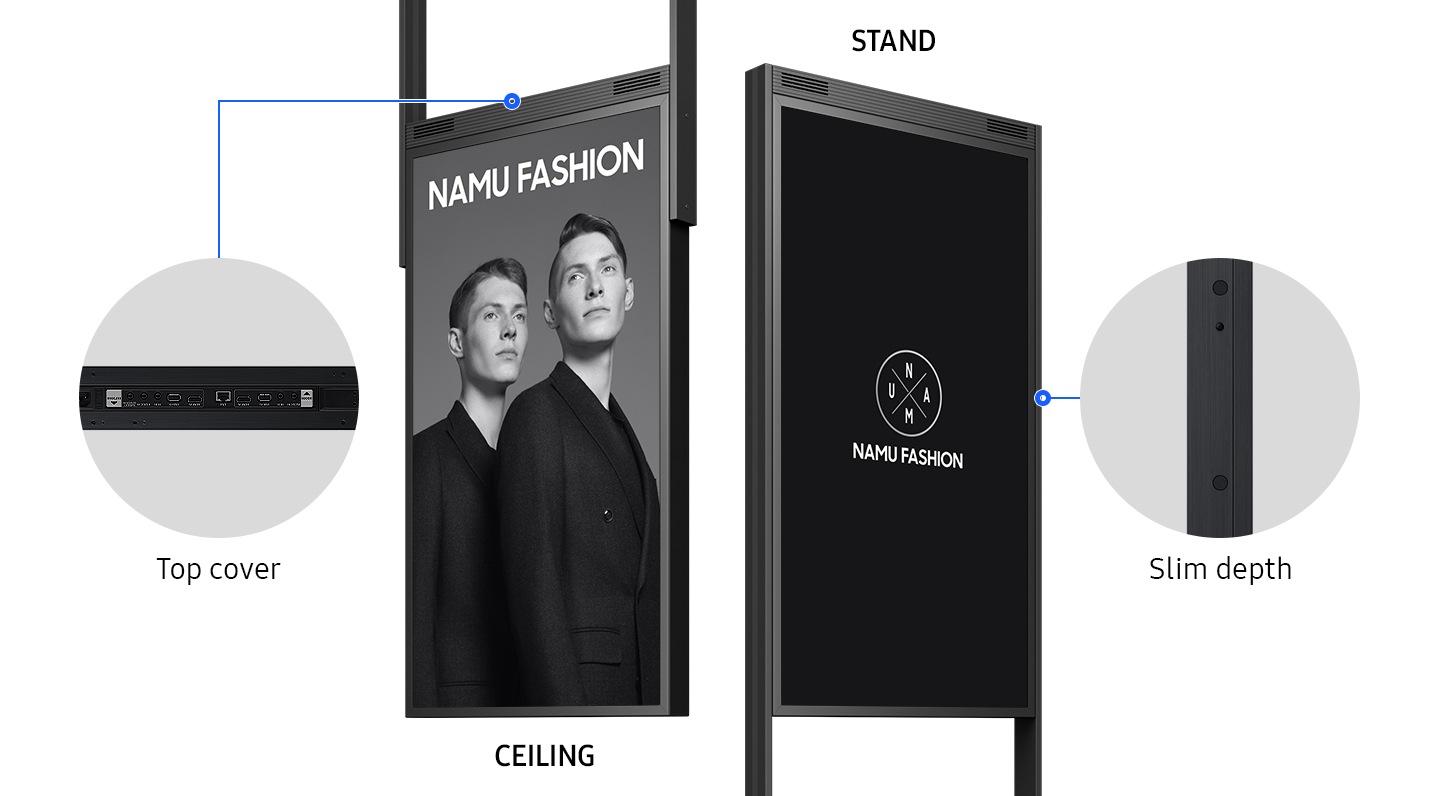

Supporting the best-in-class picture quality is a slim design that complements the surroundings of any retail environment, while freeing up valuable space for all those latest products.Modernize space with slim design

Smooth and seamless content playback

The embedded MagicINFO Player S7, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management. This ensures seamless transitions and playback to deliver a better experience for both customers and store managers.

Smooth and seamless content playback

Deliver vibrant content with efficiency

The OMN-S Series addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.Deliver vibrant content with efficiency

Durable Performance

With IP5X-validated dust protection and embedded, proprietary functionality that mitigates overheating, the OMN-S series continuously provides robust durability.Durable Performance

Clutter-Free Configuration

Cable guide and embedded Wi-Fi provide clean, organized look and allow for content and firmware updates without the need for additional messy cables.Clutter-Free Configuration

Panel

  • Diagonal Size55″
  • Type120Hz E-LED BLU
  • Resolution1920*1080 (Full HD)
  • Pixel Pitch(mm)0.630 x 0.630
  • Active Display Area(mm)1209.6(H) x 680.4(V)
  • Brightness(Typ.)4000 nit
  • Contrast Ratio6000:1
  • Viewing Angle(H/V)178/178
  • Response Time(G-to-G)6ms
  • Display Colors8 bit – 16.7M
  • Color Gamut72%
  • Operation Hour24/7
  • Haze0%

Display

  • H-Scanning Frequency30 ~ 135kHz (DP), 15 ~ 135kHz (HDMI)
  • V-Scanning Frequency30 ~ 75Hz (DP), 24 ~ 75Hz (HDMI)
  • Maximum Pixel Frequency533.25MHz (DP), 594MHz (HDMI)

Connectivity

Input
  • RGBDisplay Port 1.2 (1)
  • VideoHDMI2.0 (2)
  • HDCPHDCP 2.2
  • USBUSB 2.0 (1)
Output
  • RGBHDMI 2.0
  • VideoYes
  • AudioStereo Mini Jack
  • External ControlRS232C (In/Out), RJ45 (In/Out)
  • External SensorDetachable Type (IR, Ambient)

Power

  • TypeInternal
  • Power SupplyAC 100 – 240 V, 50/60 Hz
Power Consumption
  • Max[W/h]450W
  • Typical[W/h]276W ※ IEC 62087 measurement standard
  • BTU(Max)1536W
  • Sleep modeless than 0.5W

Mechanical Specification

Dimension (mm)
  • Set1253.4 x 724.2 x 54.5 mm
  • Package1420 x 879 x 178 mm
Weight (kg)
  • Set23.1kg
  • Package29.1kg
  • VESA Mount (mm)400 x 400 mm
  • Bezel Width (mm)19.9 (even)

Operation

  • Operating Temperature0℃~ 30℃ (Direct Sunlight) 0℃~ 40℃ (w/o Direct Sunlight)
  • Humidity10  %  ~   80   %

Feature

  • Key FeaturesHigh brightness Semi-Outdoor / Slim & Clean back design / Built-in MagicInfo Player S7, SSSP 7.0
  • OrientationLandscape / Portrait
  • Remote ControlN/A
  • Special FeaturesIP 5X rated, Polarized Sun Glasses Viewable in any direction, Portrait /Landscape Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping), Kensington Lock, WiFi Module Embedded
Internal Player
  • ProcessorCortex A72 1.7GHz Quad-Core CPU
  • On-Chip Cache MemoryL1 Instruction Cache : 48KB / L1 Data Cache : 32KB / L2 Cache : 2MB
  • Clock Speed1.7GHz
  • Main Memory Interface2.5GB / LPDDR4 1.5GHz 64bit
  • GraphicsGraphic resolution : 1920×1080 / Output resolution : 1920×1080 – Supports OpenGL ES
  • Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
  • MultimediaVideo Decoder FHD MFD : VP8, H.264, AVS+(60Hz)UHD MFD : HEVC, H.264, VP95K HEVC Decoder, SHVC(ATSC3.0)AVS2.0 HEVC / AVS2.0 1xUHD120p (DP_NR off, FRC bypass) Audio Decoder – AC3 (DD), MPEG
  • IO PortsUSB 2.0
  • Operating SystemTizen 5.0 (VDLinux)

Certification

  • Safety60950-1
  • EMCClass A

Accessory

  • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Power Cord, Remote Controller, Batteries, IR, Ambient sensor
Optional
  • StandN/A
  • MountN/A
  • SpecialtyN/A

Media Player

Media Player
  • Media PlayerN/A

Brand

Samsung
