Description
Promote content in any storefront window
Samsung’s OMN series was designed with a storefront window display in mind. It projects clear, bright images that attract and engage audiences, increasing the probability of an in-store visit.
Foster brilliant presentation for all
Featuring 4,000 nit brightness and a high contrast ratio of 5,000:1, the OMN Series’ display remains bright and clear, delivering an uncompromised picture that will capture the attention of potential customers – even in direct sunlight.
* “Conventional” refers to Samsung’s OMD-W series.

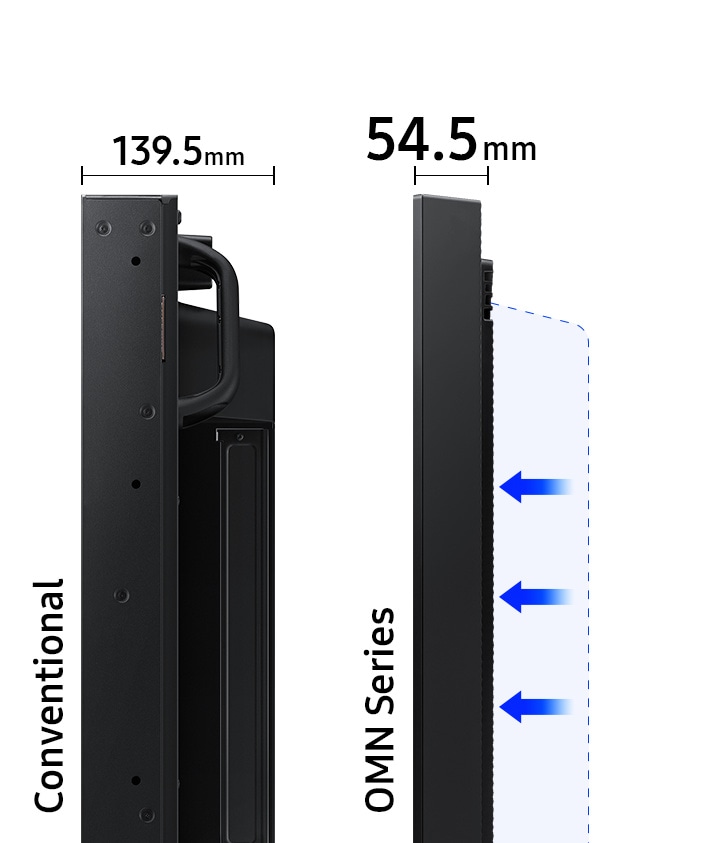

Modernise space with slim design
The OMN Series delivers an immersive content with a remarkably slim 54.5mm depth. Its compact size makes the display a natural extension of the store, as opposed to an addition that ties up valuable space.
* “Conventional” refers to Samsung’s OMD-W series.
Streamline content management
The OMN Series’ embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the display’s overall performance, allowing for easy content management and ensuring seamless content transition and playback.
Deliver vibrant content with efficiency
The OMN Series addresses energy efficiency by consuming less power than conventional displays* while delivering a brilliant picture and spectacular performance. As a result, retailers are equipped with a superior, more engaging display that offers greater control over costs.
* Conventional displays refer to Samsung’s OMD-W series.
Durable performance
With IP5X-validated dust protection and a proprietary 3-step process to prevent damage from overheating, OMN series displays stand the test of time.

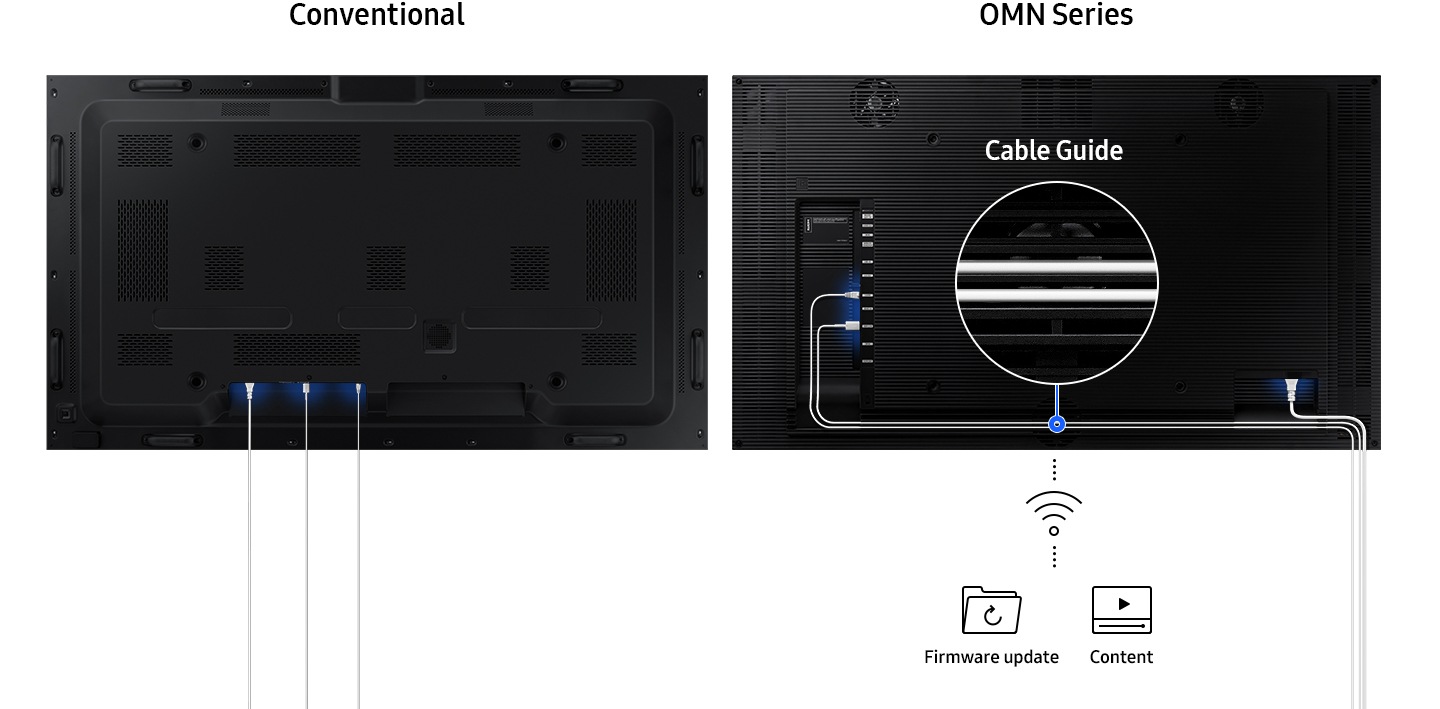

Clutter-Free Configuration
Cable guide and embedded Wi-Fi provide clean, organised look and allow for content and firmware updates without the need for additional messy cables.
* Product specification may vary by size and region.
Award-winning digital signage solution
The Samsung OMN and OMN-D Series has been recognised by leading digital signage industry awards. The displays received the AV Display Innovation of the Year from the AV News Awards and Best All-Weather Display from the TNT Awards for smart design, flawless clarity and brightness.
AV Display Innovation of the Year
“Samsung OMN and OMN-D series, its brand new semi-outdoor displays available in 46 and 55-inch, are designed with a storefront window display in mind and capture viewers’ minds with comprehensive innovation. Brilliant, vibrant images with superior picture quality, high brightness….”
Displays: All Weather Displays
“Samsung’s OMN Series not only delivers an image with flawless clarity but is also designed to maintain superior picture quality even when exposed to direct sunlight. With slim and sleek design, the OMN series is compatible with any window layout and can complement the style of any brand.”
Specifications
Full specifications
Display
- Diagonal Size55″
- Panel TypeVA
- Resolution1,920 x 1,080
- Pixel Pitch (HxV)N/A
- Brightness (Typical)4,000 cd/㎡
- Contrast Ratio5,000:1
- Viewing Angle (Horizontal/Vertical)178/178
- Response Time6ms
- Colour Gamut72 %
- Glass Haze0 %
- H-Scanning Frequency15~135kHz(HDMI), 30~135kHz(DP)
- Maximum Pixel Frequency594MHz(HDMI), 533.25MHz(DP)
- V-Scanning Frequency24~75Hz(HDMI), 30~75Hz(DP)
- Dynamic Contrast Ratio10,000:1
Connectivity
- HDMI In2
- DP In1
- DVI InN/A
- Tuner InN/A
- USB1
- Component InN/A
- Composite InN/A
- RGB InN/A
- IR InYes
- HDBaseT InNo
- HDBaseT OutN/A
- Audio InNo
- Audio OutStereo Mini Jack
- Video OutYes
- Video OutNo
- RS232 InYes
- RS232 OutYes
- RJ45 InYes
- RJ45 OutYes
- WiFiYes
- 3G DongleN/A
- BluetoothN/A
Power
- Power SupplyAC 100 – 240 V (+/- 10 %), 50/60 Hz
- Power Consumption (Off Mode)N/A
- Power Consumption (On Mode)450W
- Power Consumption (Sleep Mode)0.5W
Dimension
- Set Dimension (WxHxD)1253.4 x 724.2 x 54.5 mm
- Package Dimension (WxHxD)1420 x 879 x 178 mm
Weight
- Set Weight with Stand23.1 kg
- Package Weight29.1 kg
Operation Conditions
- Temperature0~40 ℃
- Humidity10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount400 x 400 mm
- Bezel Width19.9 mm
- Glass ThicknessN/A
- Glass FilmN/A
- Frame MaterialN/A
General Feature
- External Memory SlotNo
Optional Feature
- Protection GlassNo
- MountN/A
- StandN/A
Internal Player (MagicInfo)
- MagicInfo Daisychain Videowall SupportYes
Eco
- Energy Efficiency ClassG
Certification and Compliance
- EMCClass A
- Safety60950-1
