Samsung 75″ LH75QBNWLGC Professional Display QBN-W Series

RM16,624.00

Professional Display QBN-W Series 75”

  1. UHD E-Board
  2. Magnetic pen
  3. Slim Design
SKU: LH75QBN-WLGC
Category:

Revitalize Productive Collaboration

Samsung’s QBH-TR / QBN-W e-boards offer a versatile, all-in-one arena for improved collaboration. Enhanced touch technology, the intuitive MagicIWB S5 solution and UHD picture quality come together to boost productivity and collaboration by facilitating engaging, efficient interaction.

Revitalize Productive Collaboration

Enhance Touch, Enhance Capacity

Leverage heightened touch functionality for a smooth and versatile digital writing experience. Up to four users can write simultaneously using the provided pen or virtually any other tool.

Enhance Touch, Enhance Capacity

Elevate Collaboration Quality

The embedded MagicIWB S5 solution facilitates discussion management and organization with an intuitive interface for quick access to vital collaborative functionalities such as screen mirroring and real-time notation saving.

Elevate Collaboration Quality

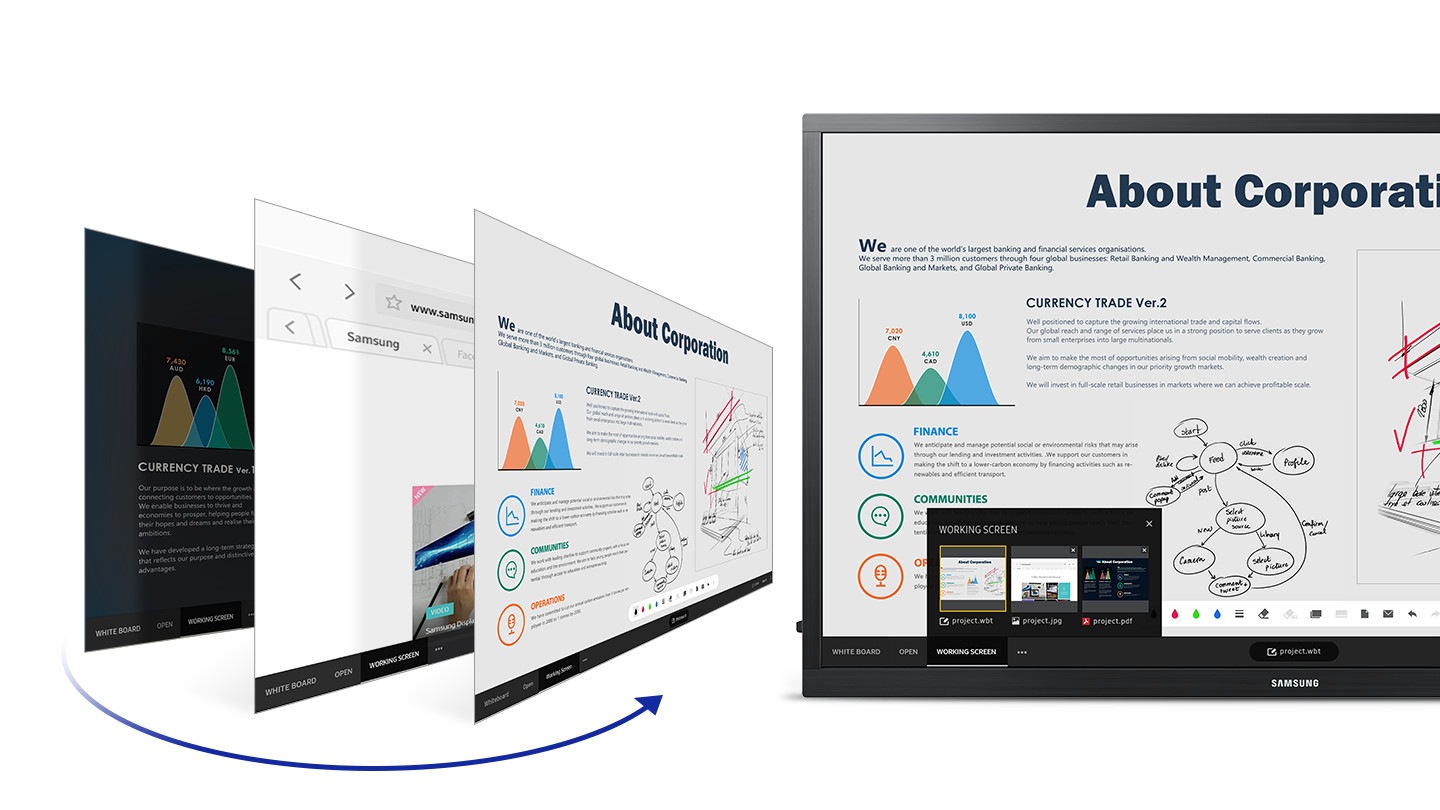

Switch Sources Seamlessly

Through the Working Screen function, users can quickly switch between multiple screens, such as the whiteboard, internet browser and connected input sources, with just a few touches.

Switch Sources Seamlessly

Retrieve and Control Content Remotely

Pull and edit content on remote laptops directly through the central screen utilizing touch functionality. The powerful Knox system secures the Remote Workspace connection to protect against information leakage and meddling.

Retrieve and Control Content Remotely

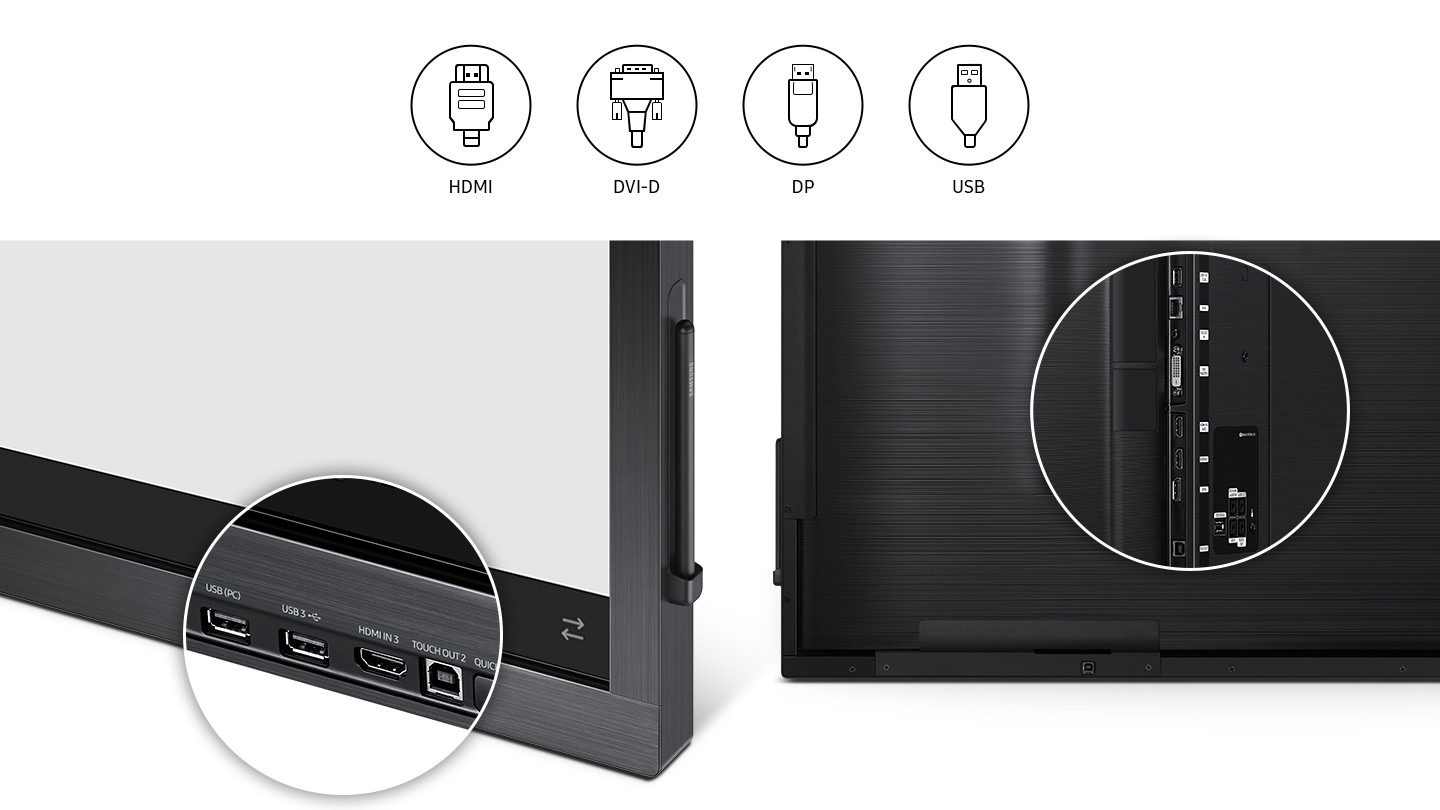

Connect with Convenience

Each e-board offers a wide range of connections including HDMI, DVI-D, DP and USB ports, where users can load, share and revise content directly from their personal devices.

Connect with Convenience

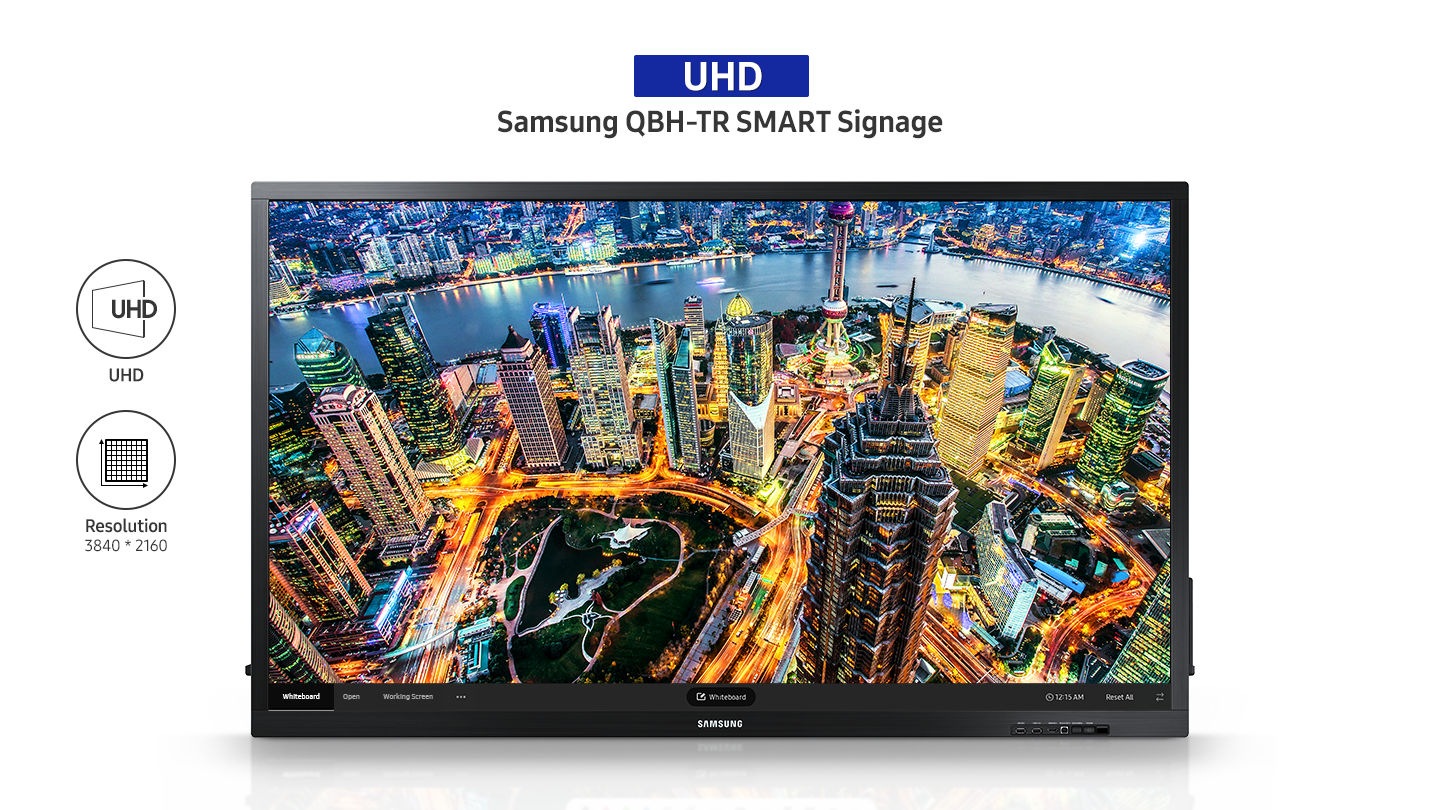

Amplify Visual Presentation

Bring collaborative ideas to life through advanced UHD picture quality. Through ultra-high resolution, ensure all notations and introduced content are clear and legible for every participant.

Amplify Visual Presentation

Maintain Organization with Style

Drive more organized collaboration with a sleek, sophisticated design. The magnetic side pen holder and frontal connection ports keep needed functions within reach, without the mess.

Maintain Organization with Style
Specification
  • Display
    • Diagonal Size75″
    • Panel TypeNew Edge, 60Hz
    • Resolution3,840 x 2,160
    • Pixel Pitch (HxV, mm)0.42975(H) x 0.42975(V)
    • Brightness (Typical, cd/m2)250
    • Contrast Ratio6,000:1
    • Viewing Angle (H/V)178/178
    • Response Time8ms
    • Color Gamut‎72%‎
    • Glass Haze‎Panel 0.02, Touch glass 0.15%‎
    • H-Scanning Frequency30~81kHz
    • Maximum Pixel Frequency594Mhz
    • V-Scanning Frequency48~75Hz
    • Dynamic Contrast RatioMega
  • Connectivity
    • HDMI In3
    • DVI In1(DVI-D)
    • USB3
    • Audio InYes
    • Audio OutStereo Mini Jack
    • RS232 InYes
    • RS232 OutYes
    • RJ45 InYes
    • RJ45 OutNo
    • IR InYes
    • HDBaseT InNo
    • WiFiYes
    • 3G DongleNo
    • BluetoothNo
  • Power
    • Power SupplyAC 100~240V 50/60Hz
    • Power Consumption (On Mode, W)220
    • Power Consumption (Sleep Mode, W)‎0.5‎
  • Dimension
    • Set Dimension (WxHxD, mm)‎1741.5 x 1012.1 x 81.2‎
    • Package Dimension (WxHxD, mm)‎1905 x 1175 x 307‎
  • Weight
    • Set Weight (kg)‎57.4‎
    • Package Weight (kg)‎69.5‎
  • Mechanical Specification
    • VESA Mount (mm)‎400 x 400‎
    • Bezel Width (mm)T(33.0), B(48.9),LR(33.0)
    • Frame MaterialNon-Glossy
  • Operation Conditions
    • Temperature0℃~ 40℃
    • Humidity10 ~ 80%, non-condensing
  • General Feature
    • External Memory SlotNo
  • Optional Feature
    • MountYes (WMN6575SE)
    • StandNo
  • Eco
    • Energy Efficiency ClassN/A
  • Certification and Compliance
    • EMCFCC (USA) Part 15, Subpart B Class ACE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003VCCI (Japan) : VCCI V-3 /2010.04 Class AKCC/EK (Korea) : Tuner : KN13 / KN20 Tunerless : KN22 / KN24BSMI (Chinese Taiwan) : CNS13438 (ITE EMI) Class A / CNS13439 (AV EMI) / CNS14409 (AV EMS) / CNS14972 (Digital)C-Tick (Australia) : AS/NZS CISPR22:2009CCC(China) :GB9254-2008 GB17625.1-2012GOST(Russia/CIS) : GOST R 51317 Series, GOST 22505-97 EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
    • SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Chinese Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950-1 CSA (Canada) : cULTUV (Germany) : CENEMKO (Norway) : CE

Brand

Samsung
