Samsung 85″ LH85QBR-BBGC QB85R QBR Series Smart Digital Signage



UHD display that engages customers with lifelike imagesthrough innovative and unique picture-enhancing features.


Engage customers with lifelike images through ultrahigh-definition resolution

Deliver UHD-level picture quality even with lower resolutioncontent through Crystal Processor 4K supporting advanced UHD upscalingtechnology

Symmetrical, slim design simplifi es installation andcomplements any environment

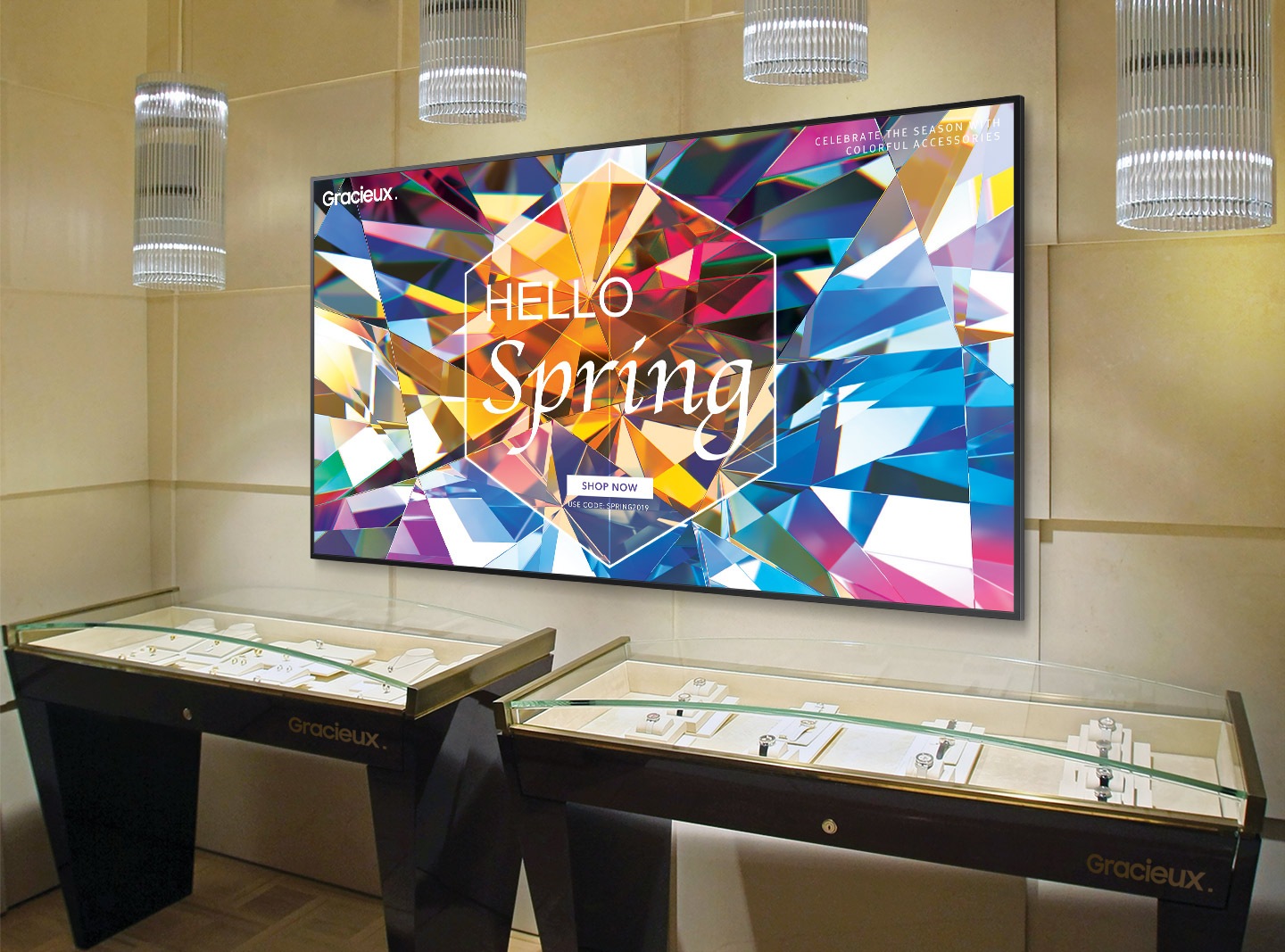

Time to upscale your display

Samsung’s new QBR-B series displays cut through the clutter to deliver UHD resolution as well as intelligent UHD upscaling and rich colours with Dynamic Crystal Colour all in a slim design.

Time to upscale your display

Image simulated for illustrative purpose only

Incredible 4K picture quality

Samsung’s new QBR-B series provides ultra high-definition 4K resolution, creating lifelike images with sharp picture quality.

Incredible 4K picture quality

Conventional refers to FHD Samsung Outdoor Displays. Image simulated to illustrative purpose only.


Crystal Processor 4K

Intelligent UHD upscaling technology, made possible by Samsung’s Crystal Processor 4K, is designed to allow content developed at a low resolution to be elevated to UHD-level quality.* It also performs edge restoration and noise reduction to optimise on-screen text and imagery.

Crystal Processor 4K
  • *Picture quality may vary depending on quality of source content *Conventional refers to Samsung Outdoor Display’s that do not feature Crystal Processor 4K. Image simulated for illustrative purpose only.

Dynamic Crystal Display

The QBR-B series features Dynamic Crystal Display, using 10 bit processing for incredible colour expression, allowing viewers to enjoy a wide spectrum of colours. HDR+ compatibility converts standard definition content to HDR quality for sharp contrast and vivid colours.

Dynamic Crystal Display

Image simulated for illustrative purpose only. *Conventional refers to Samsung Outdoor Displays that do not feature Dynamic Crystal Display.

Slim and symmetrical design

The QBR-B series features a symmetrical design – simplifying wall mounting and helping to create a seamless installation experience.

Slim and symmetrical design

Image simulated for illustrative purpose only

Clean cable management

With QBR-B’s new cable guide feature, retailers are able to tuck away messy cables from view. This allows for a clean and visually-appealing shopping experience for customers, even when the back of the display is visible.

Clean cable management

Powerful, all-in-one solution

Tizen 4.0

SSSP is an all-in-one solution that simplifies installation and maintenance. With Tizen 4.0, businesses can enjoy easy development, reinforced capability with multiple web formats and standards and secured protection.

Powerful, all-in-one solution

Samsung Workspace

Secured by Knox

With security provided by Knox, the displays feature Samsung Workspace which supports wireless cloud service access and control of a PC without needing a physical connection. Samsung Workspace simplifies meeting spaces while also improving security.

Samsung Workspace secured by Knox



  • Diagonal Size85″
  • Panel TypeVA
  • Resolution3,840 x 2,160
  • Pixel Pitch (HxV)0.4875 x 0.4875 (mm)
  • Brightness (Typ)350 nit
  • Contrast Ratio⁵4,000:1
  • Viewing Angle (H/V)178/178
  • Response Time6ms
  • Color Gamut92% (DCI-P3, CIE 1976)
  • Glass Haze2%
  • H-Scanning Frequency30 ~ 81kHZ
  • Maximum Pixel Frequency594MHz
  • V-Scanning Frequency48 ~ 75HZ
  • Dynamic Contrast RatioMega


  • HDMI In2
  • DP InNo
  • DVI InYes
  • Version of HDMI2
  • Version of DPNo
  • Version of HDCP2.2
  • Tuner InN/A
  • USB2
  • Component InN/A
  • Composite InN/A
  • RGB InN/A
  • IR InYes
  • HDBaseT InN/A
  • Audio InYes
  • Audio OutStereo Mini Jack
  • Video OutN/A
  • Power OutN/A
  • RS232 InYes
  • RS232 OutYes
  • RJ45 InYes
  • RJ45 OutN/A
  • WiFiYes
  • 3G DongleN/A
  • BluetoothN/A


  • Power SupplyAC100-240V 50/60Hz
  • Power Consumption (Off Mode)N/A
  • Power Consumption (On Mode)198 W
  • Power Consumption (Sleep Mode)0.5 W

Set Dimension (WxHxD)

  • Set Dimension (WxHxD)1897.8 x 1080.8 x 56.7 mm
  • Package Dimension (HxWxD)2090 x 1247 x 260 mm


  • Net Weight48.4 kg
  • Package Weight63.7 kg

Operation Conditions

  • Temperature0℃~ 40℃
  • Humidity10 ~ 80%, non-condensing

Mechanical Specification

  • VESA Mount600 x 400 mm
  • Bezel Width10.9(T/L/R) 12.9(B)
  • Frame MaterialNon-Glossy

General Feature

  • External Memory SlotN/A

Optional Feature

  • MountWMN8200SG
  • StandN/A


  • OS VersionTizen 4.0
  • Flash Memory Size8GB


  • Energy Efficiency ClassN/A

Certification and Compliance

  • EMCClass A
  • Safety60950-1, 62368-1
