Samsung 55″ LH55VHT-EBGB VH55T VHT Direct View LED Smart Signage Video Wall


Samsung Smart Signage Video Wall

  • Samsung Smart Signage Video Wall
  • Extreme Narrow Bezel 1.8mm
  • 24/7 operation

Always-on, space-saving solution with extreme-narrow bezels

See an immersive and dependable viewing experience, 24/7 with Samsung’s VHT-E series. The display’s slim depth and 700 nit brightness ensures highly visible images and legible messages in a wide range of locations from shopping malls to lobbies, meeting rooms, control rooms and more.Always-on, space-saving solution with extreme-narrow bezels

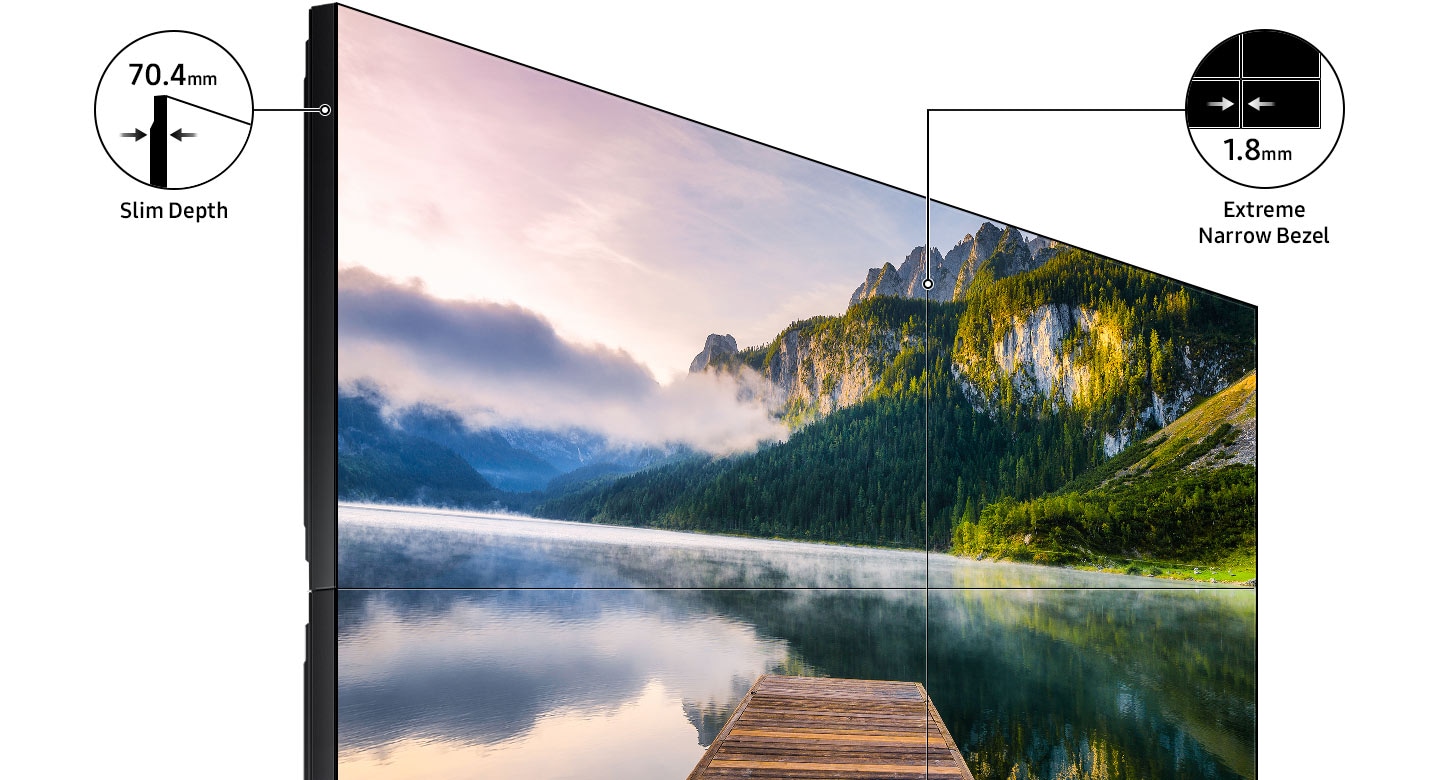

Transform any space with high impact visuals

The slender design and 70.4mm cabinet depth provide flexibility for installation and an extreme-narrow 1.8mm bezel-to-bezel width creates a seamless picture opening endless possibilities for designing a captivating visual experience.Transform any space with high impact visuals

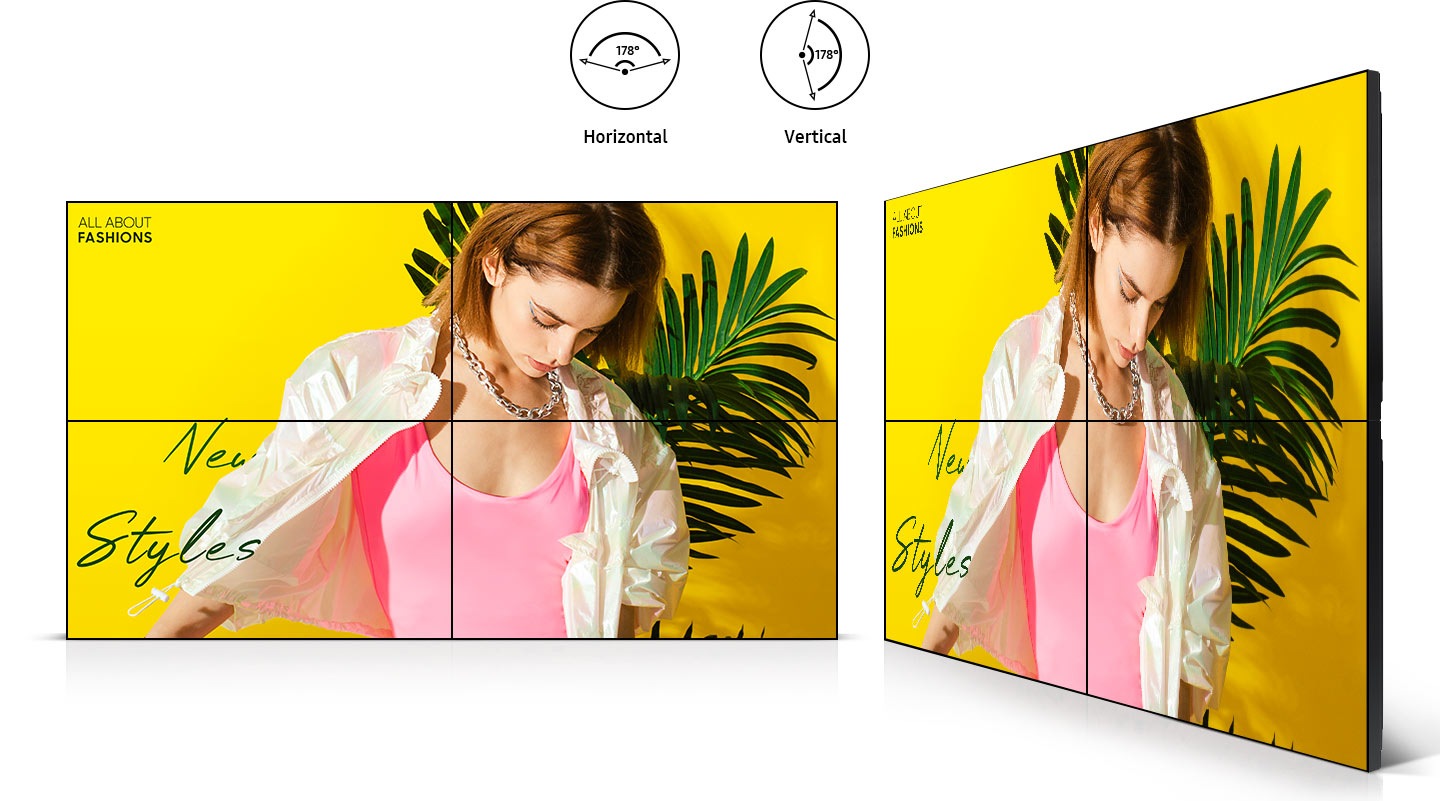

View content from any angle

Wide viewing angles mean content is easily visible even if viewers aren’t standing directly in front of the display. Audiences can get clear details and vivid colors regardless of where the screen is located.View content from any angle

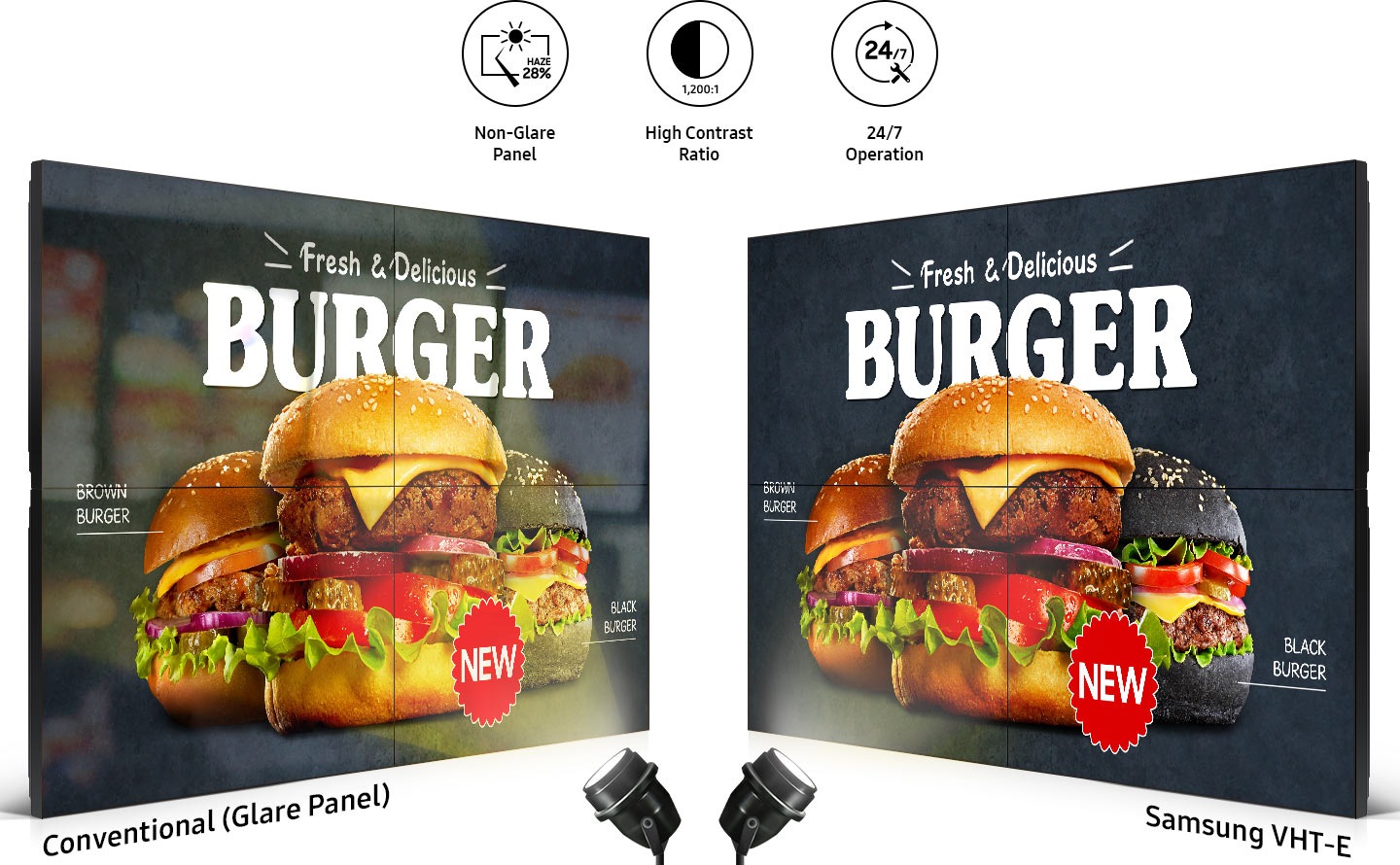

Vibrant images in any light

Non-glare panels evenly distribute light across the screen to maintain vibrant and accurate content. Combined with a high contrast ratio and 24/7 operation, visuals are vivid and eye-catching any time of the day or night — regardless of ambient light.

Vibrant images in any light

Image enhancement

Samsung’s powerful picture enhancement technology ensures all content is vibrant and clear. With Picture Enhancer mode, color saturation and contrast are improved by adjusting the gamma curve. Using Black Equalizer mode, dark images are lightened, making details easier to see.Image enhancement

Comprehensive calibration to fit your needs

Multi-step factory tuning provides uniform brightness and color. Users can also fine-tune advanced settings with free powerful Color Expert Pro software. For quick and simple calibration, Color Expert Pro Mobile enables white balance adjustments for displays up to 5×5 using a mobile camera.Comprehensive calibration to fit your needs

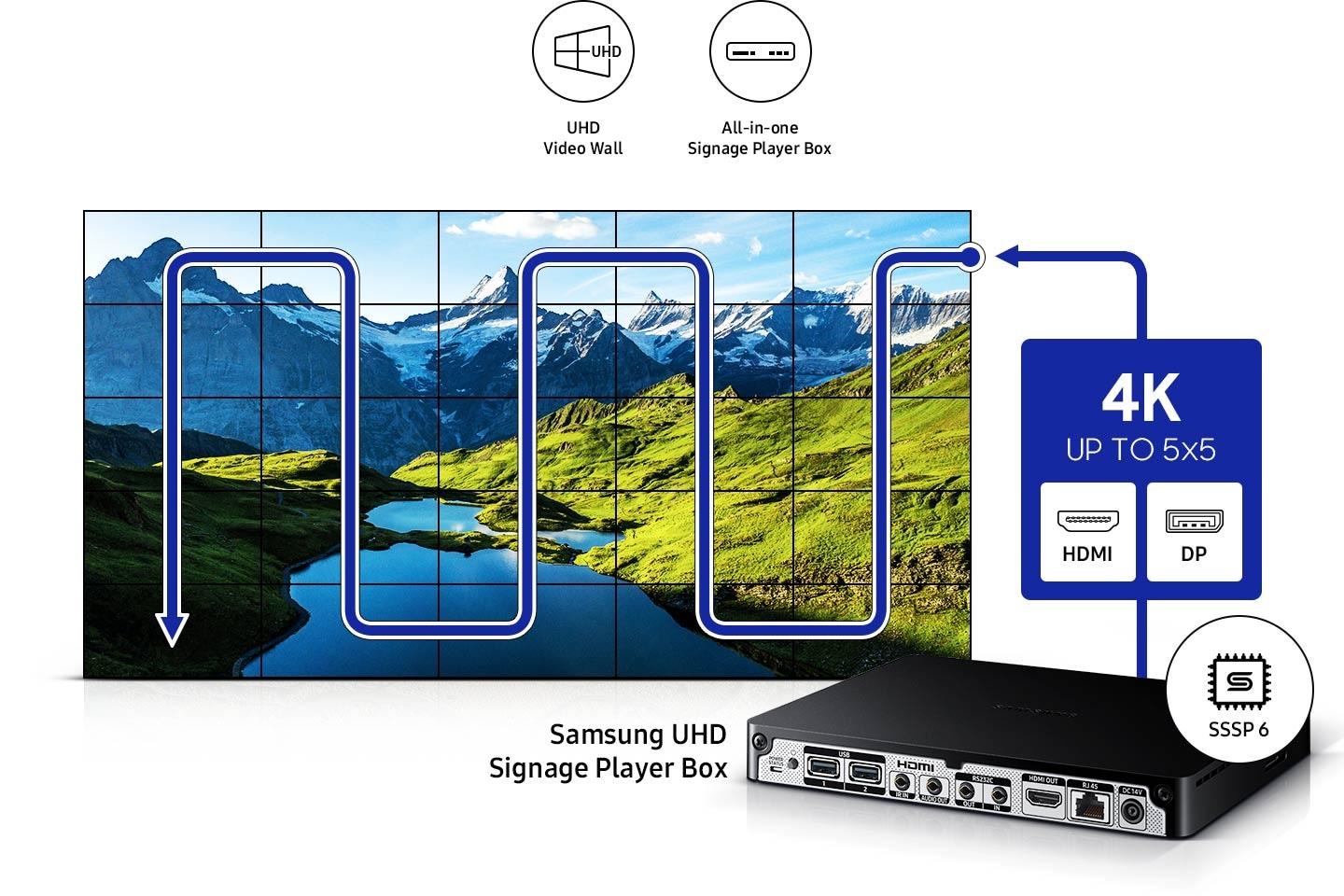

Advanced presentation, simplified operation

Utilizing daisy chain design through DisplayPort 1.2 or HDMI ports enables the display to present UHD content on multiple screens without an external graphic card. Samsung’s UHD Signage Player Box streamlines functionality by combining the media player and content management software.Advanced presentation, simplified operation

Industry standard certified

IP5x certified, the VHT-E series is dust-resistant and able to withstand a range of environmental conditions without needing to prepare additional enclosure. The display packaging also passed a rigorous 4-step test in an ISTA-certified laboratory designed minimizes possible damage during delivery.

  • Display
    • Diagonal Size55″
    • Panel TypeDirect LED
    • Resolution1,920 x 1,080
    • Pixel Pitch (HxV, mm)‎0.63×0.63‎
    • Brightness (Typical, cd/m2)‎MAX700‎
    • Contrast Ratio1,200:1
    • Viewing Angle (H/V)‎178/178‎
    • Response Time8ms
    • Color Gamut‎72%‎
    • Glass Haze‎0.28%‎
    • H-Scanning Frequency65kHz ~ 70kHz
    • Maximum Pixel Frequency154MHz(77MHzx2)
    • V-Scanning Frequency47Hz ~ 63Hz
    • Dynamic Contrast Ratio500,000:1
  • Connectivity
    • HDMI In2
    • DP In1
    • DVI InYes
    • USB1
    • Component InNo
    • Composite InNo
    • IR InYes
    • HDBaseT InNo
    • Audio InYes
    • Audio OutStereo Mini Jack
    • Video OutYes
    • Power OutNo
    • RS232 InYes
    • RS232 OutStereo Mini Jack
    • RJ45 InYes
    • RJ45 OutNo
  • Power
    • Power SupplyAC100-240V 50/60Hz
    • Power Consumption (On Mode, W)‎270‎
    • Power Consumption (Sleep Mode, W)‎0.5‎
  • Dimension
    • Set Dimension (WxHxD, mm)‎1211.5 x 70 x 682.3‎
    • Package Dimension (WxHxD, mm)‎1398 x 844 x 257‎
  • Weight
    • Set Weight (kg)‎19.4‎
    • Package Weight (kg)‎27.6‎
  • Operation Conditions
    • Temperature0℃~ 40℃
    • Humidity10 ~ 90%
  • Mechanical Specification
    • VESA Mount (mm)‎600 x 400‎
    • Bezel Width (mm)‎0.9mm(U/L), 0.9mm(R/B)‎
    • Frame MaterialGlossy
  • General Feature
    • External Memory SlotNo
  • Optional Feature
    • MountYes
    • StandNo
  • Internal Player (MagicInfo)
    • MagicInfo Daisychain Videowall SupportYes
  • Certification and Compliance
    • EMCClass A
    • Safety60950-1
