Samsung 146″ Premium AIO LED The Wall All-in-One IAB Indoor LED P0.84 LH008IA-BMUS LH008IABMUS

RM1,690,000.00
  • Black Seal Technology
  • Pre-assembled Installation
  • All-inclusive Components
SKU: LH008IA-BMUS
Category:

Adopt a new paradigm for your business

The Wall is the epitome of innovation. It constantly delivers new avenues to create unparalleled visual statements. Redefining the LED paradigm once again, The Wall now solves the biggest challenge of industry, drastically improving installation. The Wall, let it transform your business.

Adopt a new paradigm for your business

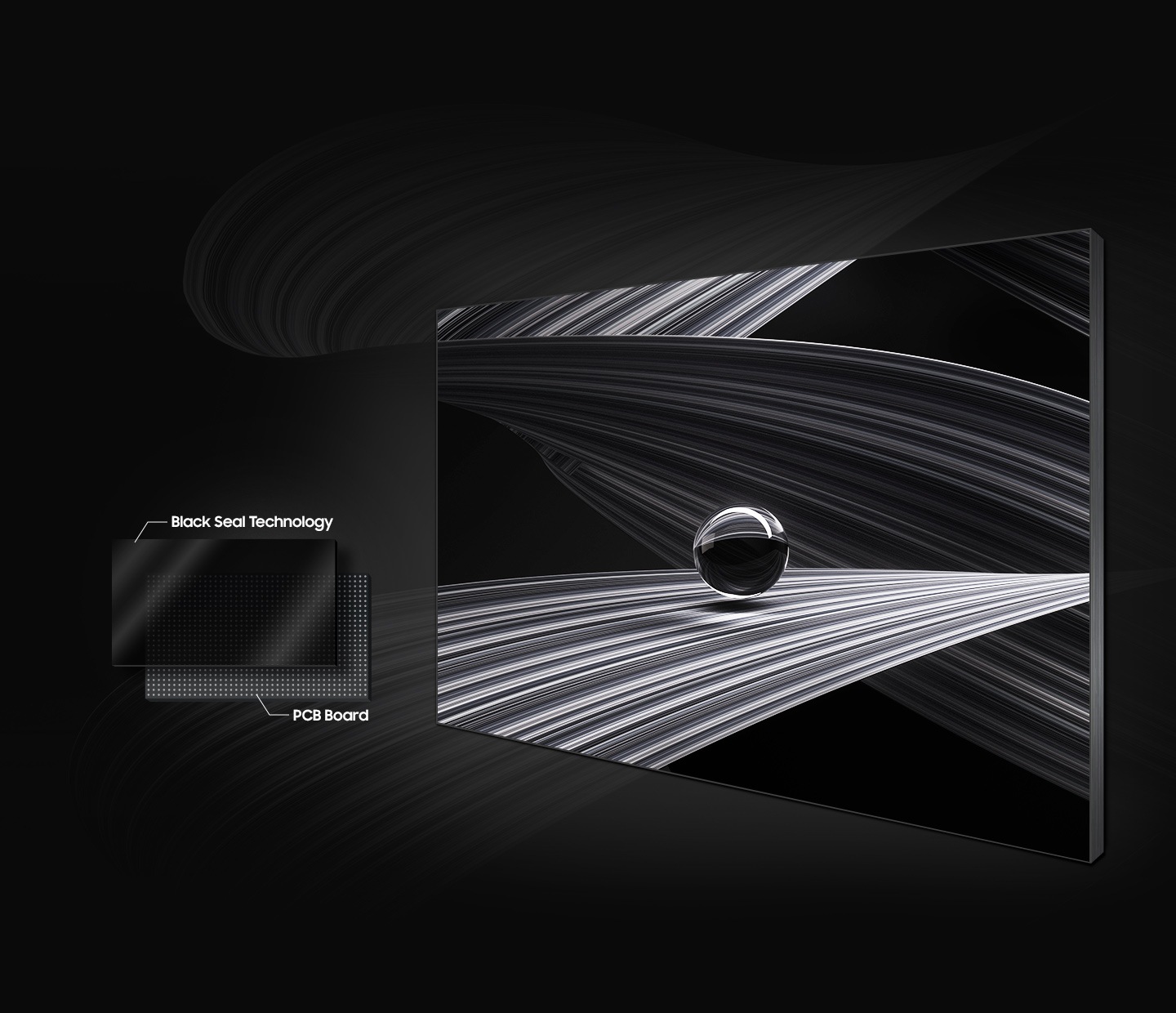

An abyss of depth

Black Seal Technology

A deep black background blankets the screen with perfect uniformity, creating a seamless canvas for purer black levels with enhanced depth that delivers unparalleled contrast and immaculate detail.

An abyss of depth

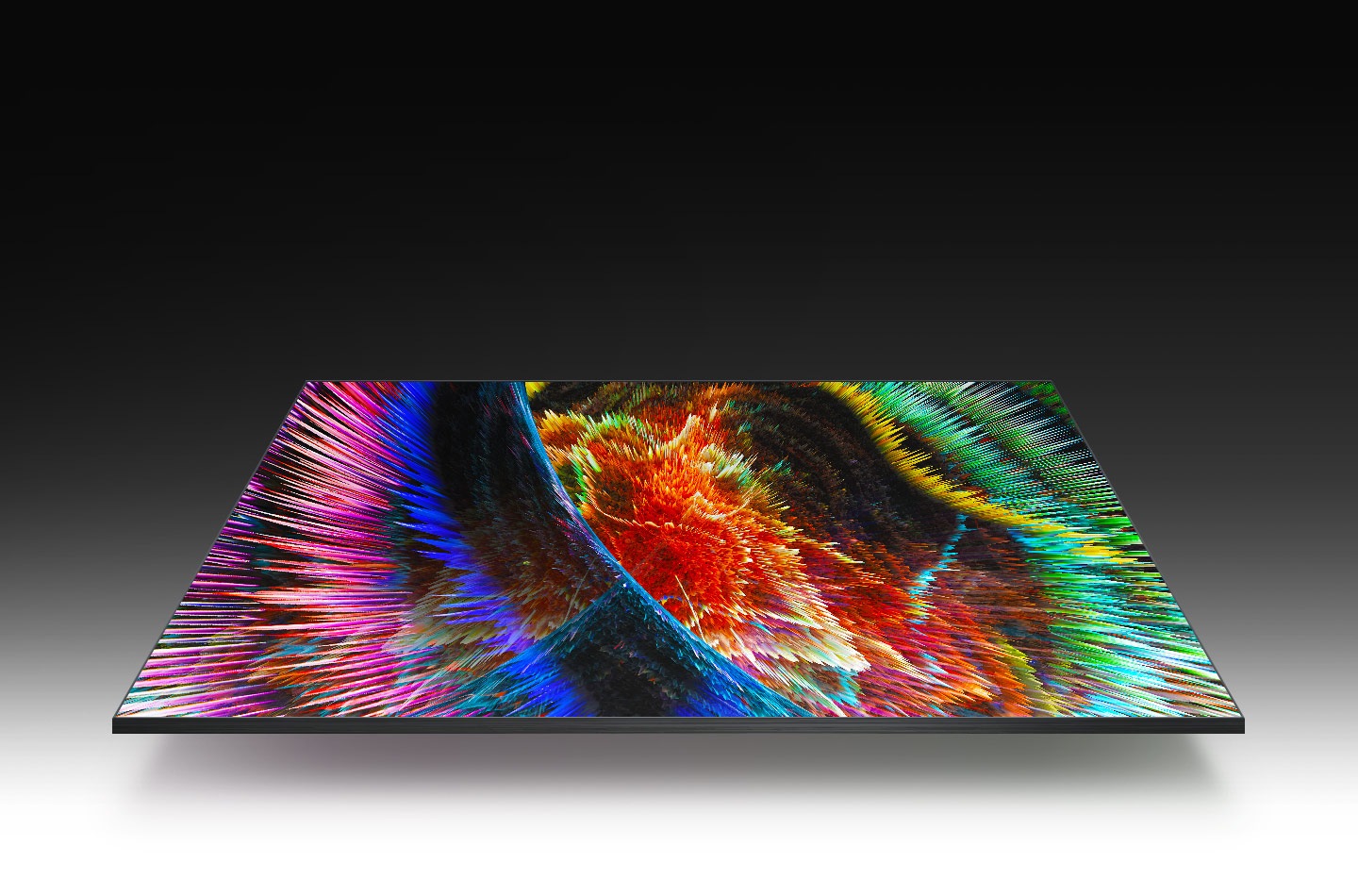

Superior color purity

Ultra Chroma Technology

Colors leap to life with spectacular vibrancy to recreate scenes as if you were there in real life. Narrower wavelengths produce RGB colors two times purer* and more accurate than conventional LEDs.

* Figure is based on internal testing standards against Samsung’s conventional LED Signage.

Superior color purity

The installation process, reinvented

Pre-assembled Installation

The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size. Installation now takes only two hours for two people to complete the screen.

The installation process, reinvented

* The Wall All-in-One 110-inch model requires three preset modules. The 146-inch model requires four preset modules.* Install time estimate based on internal testing.

The installation process, reinvented

Pre-assembled Installation

The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size. Installation now takes only two hours for two people to complete the screen.

The installation process, reinvented

* The Wall All-in-One 110-inch model requires three preset modules. The 146-inch model requires four preset modules.* Install time estimate based on internal testing.

The installation process, reinvented

Pre-assembled Installation

The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size. Installation now takes only two hours for two people to complete the screen.

The installation process, reinvented

* The Wall All-in-One 110-inch model requires three preset modules. The 146-inch model requires four preset modules.* Install time estimate based on internal testing.

The installation process, reinvented

Pre-assembled Installation

The Wall All-in-One drastically simplifies installation by docking the background plates and hanging just three or four preset modules, depending on the display size. Installation now takes only two hours for two people to complete the screen.

The installation process, reinvented

* The Wall All-in-One 110-inch model requires three preset modules. The 146-inch model requires four preset modules.* Install time estimate based on internal testing.

Auto configuration setup

Built-in Control Box

Time-consuming configuration between control box and cabinet is no longer needed. The Wall All-in-One integrates the control box so it’s built-into the display, eliminating a cumbersome configuration process to get the display up and running faster.

Auto configuration setup

Critical decisions without complexity

Simple Choice

The Wall All-in-One removes complex elements traditionally associated with LED displays, creating a streamlined purchase path. Now, make purchases based on just two factors – resolution and size – without complications such as pixel pitch or configuration.

Critical decisions without complexity

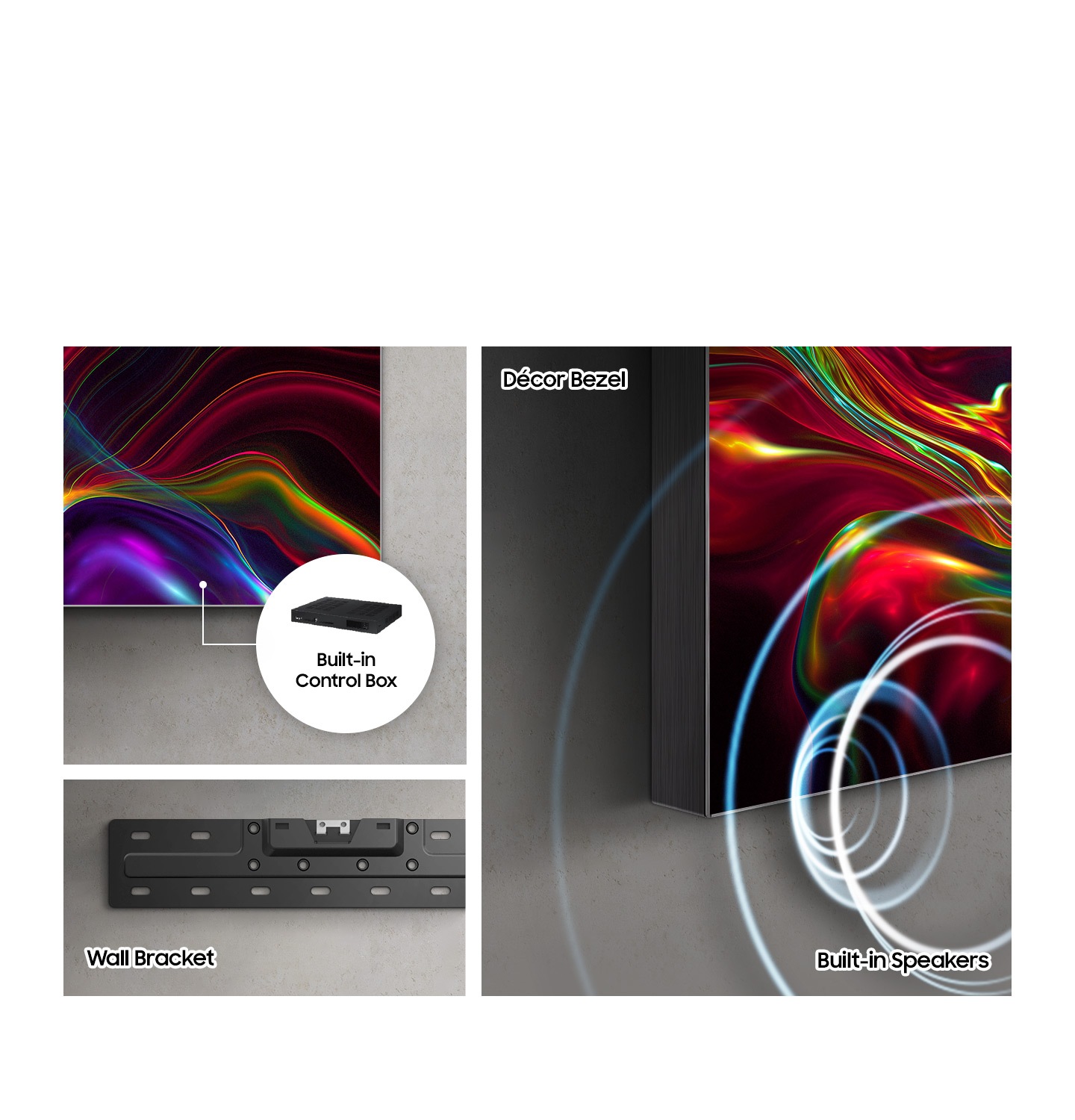

No extra peripherals needed

All-inclusive Components

The Wall All-in-One includes everything you need to begin operations – from the control box and wall brackets to speakers and deco bezels. No additional purchases or components are required, allowing you to focus on getting your display up and running fast.

No extra peripherals needed

Colors mapped to perfection

20bit Processing

The Wall All-in-One offers 20bit processing to present exact color mapping with faultless accuracy. Deeper bit depth at low grayscale also delivers extraordinary contrast ratio and smooth, natural tones.

Colors mapped to perfection

Continuous natural shading

Linear Grayscale

A precise linear grayscale showcases intricacies in every scene, delivering textures, volume and continuous shadow details. The elevated continuity pulls you further into your content for unbroken immersion.

Continuous natural shading

Instant AI optimization

Neural Quantum Processor 4K

Every second of content is instantly analyzed and optimized for perfect picture quality. The powerful AI processor delivers superior visuals in any size up to 4K* resolution, enhancing contrast and removing noise.

Instant AI optimization

* The upscaling resolution may vary based on the resolution support of individual models.

Dazzling dynamic range

MICRO HDR

Reimagine the limits of conventional screens with advanced HDR picture refinement technology to illuminate ideal peak brightness and contrast in every scene for precise, true-to-life imagery.

* HDR support may vary depending on viewing conditions and specifications.

Dazzling dynamic range

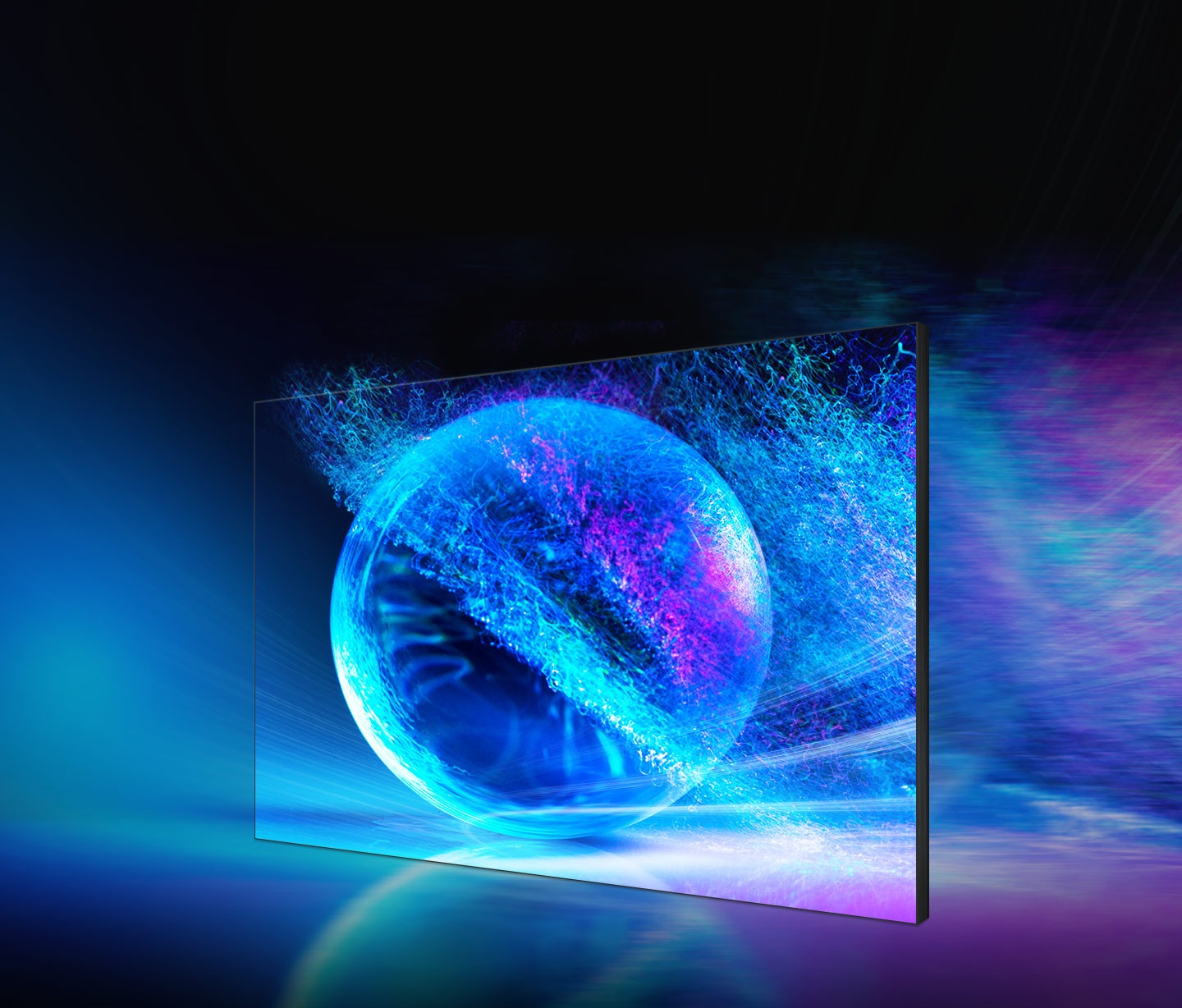

Smooth, seamless motion

MICRO Motion

Every motion becomes sharper, with greater clarity. The Wall All-in-One automatically converts standard 60Hz signals to 120Hz, removing motion judder in fast-paced action for smoother streams and a seamless viewing experience, every time.

Smooth, seamless motion

Specifications

Operation Conditions

  • Working Temperature0℃~+40℃ / 10~80%RH

Physical Parameter

  • Pixel Pitch0.84mm
  • Pixel Configuration3840 x 2160
  • Diode TypeFlip-chip RGB LED (182*93)

Optical Parameter

  • Brightness500nit
  • Contrast Ratio24000:1
  • Viewing Angle (Horizontal/Vertical)170/155°
  • Color Temperature6,500K ± 500K (floating bin)

Electrical Parameter

  • Video Rate120 Hz
  • Input Voltage (alternating current)100~240V AC
  • Power Frequency50/60 Hz
  • Refresh Rate3840 Hz

Certification and Compliance

  • SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950
  • EMCClass A FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005

Brand

Samsung
