Samsung 13″ LH13QBR-EBGC QB13R QBR Series Smart Digital Signage

RM2,499.00

13″ QBR Series Smart Signage Display

  1. Enhanced communication in a compact display
  2. Crisp and visible content
  3. Slim, smart design
SKU: LH13QBR-EBGC
Category:

Enhanced communication in a compact display

Samsung’s QB13R small display enables personalized and more impactful communication through its compact and versatile design. An all-in-one solution designed for professional use, the QB13R improves the operational efficiency of content, while also ensuring reliable performance for any business use.

Enhanced communication in a compact display

Crisp and visible content

The display supports 1920×1080 FHD resolution, displaying crisp and easy-to-read content. This is enhanced by a non-glare panel which always delivers clear content in any ambient light. These innovative features are supported by reliable 16/7 operation, suitable for professional use.

Crisp and visible content

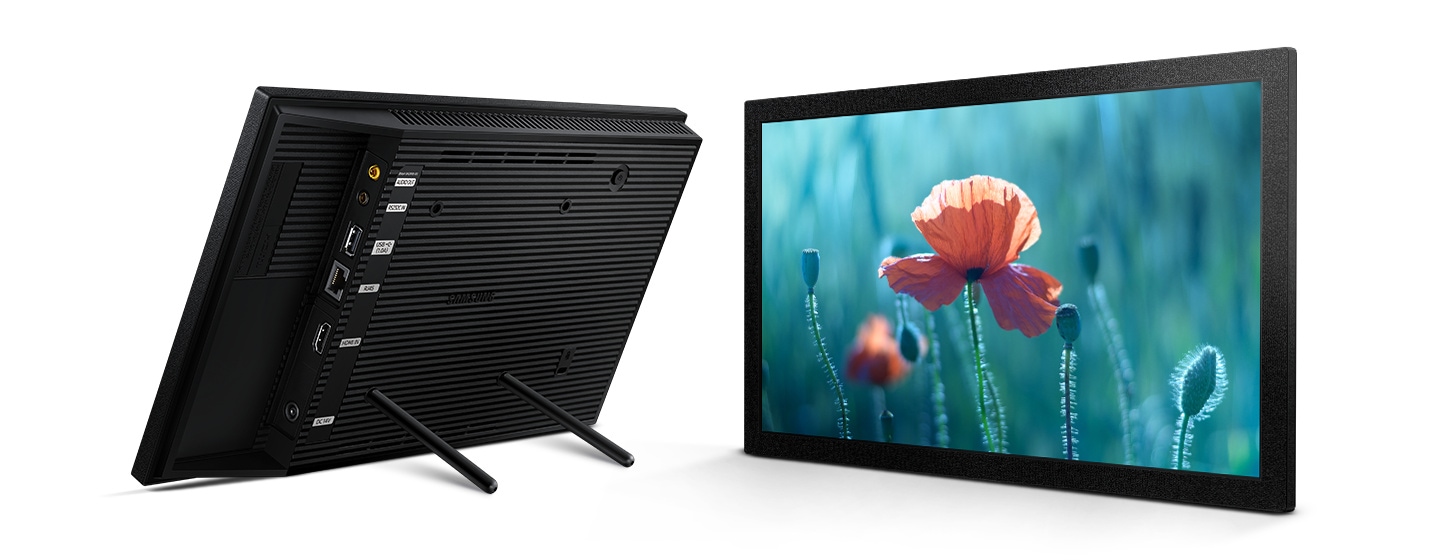

Slim, smart design

The compact and slim design of the QB13R allows for efficient space utilization, even in compact locations. A sleek back design makes the display optimal for both wall mounting or simply standing, while the connectivity, content play and device controls are easy to operate.

Slim, smart design

Powerful content playback

With an embedded MagicINFO S player, backed by TIZEN, the QB13R allows efficient and seamless playback without any external media player. SSSP also allows easy content development through reinforced compatibility with multiple web formats.

Powerful content playback

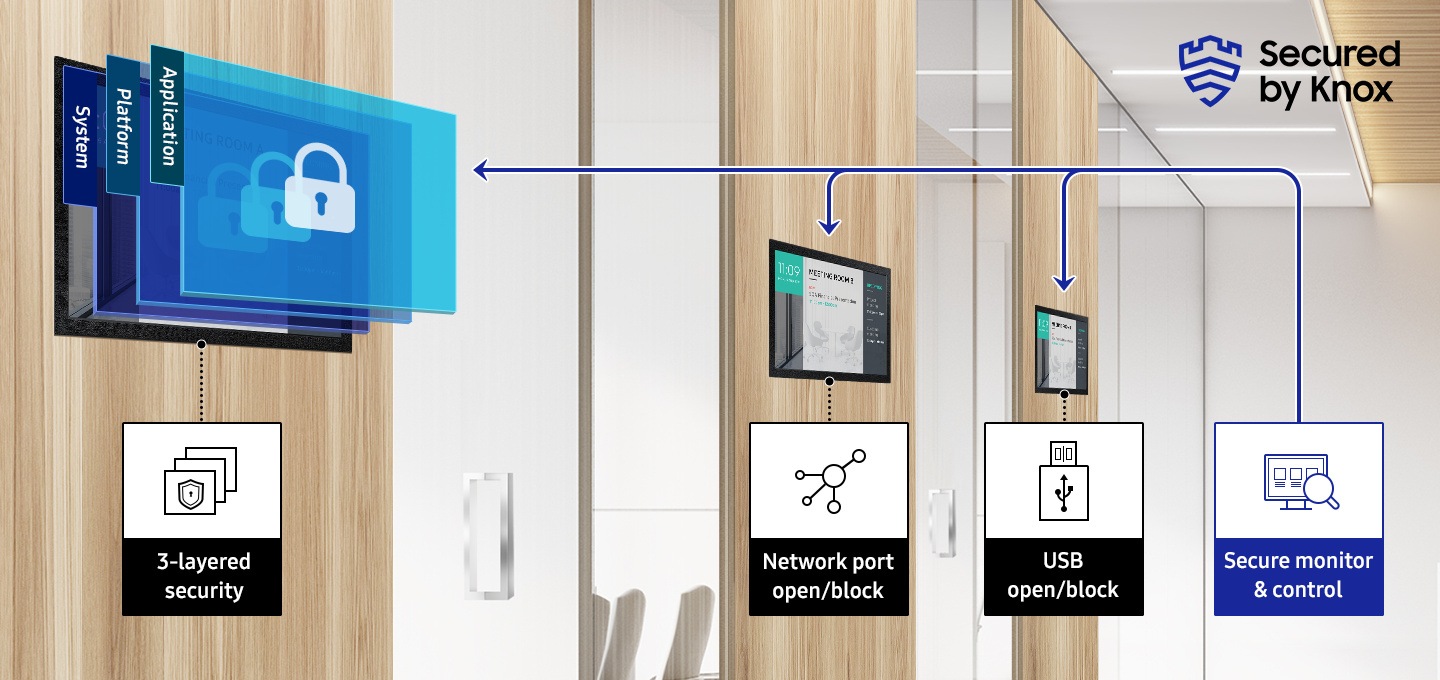

Comprehensive security setup

The powerful Knox security system provides rigid, three-layer security, offering airtight protection at the application, platform and system level, while restricting access to content and hardware. In addition, remote control of the network and USB ports prevents any unauthorized access.

Comprehensive security setup

Convenient, clean display control

With center IR, each display receives IR signals direct to the panel, allowing easy and convenient remote control even with a tailored installation. When mounted, display doesn’t require an IR receiver cabling extension. Built-in Wi-Fi allows wireless remote management for both content and display.

Convenient, clean display control

Safe operation, reliable performance

The QB13R is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, IP5x rating ensures durable performance even in dusty environments.

Safe operation, reliable performance

* IP5x : Product operation is not guaranteed when exposed to particular types of dust, such as metal dust.

Specification
  • Display
    • Diagonal Size13″
    • Panel TypeADS
    • Resolution1920 x 1080
    • Pixel Pitch (HxV)0.153 x 0.153 mm
    • Brightness (Typical)300 nit
    • Contrast Ratio800:1
    • Viewing Angle (H/V)178° / 178°
    • Response Time8 ms
    • Color Gamut45 %
    • Glass Haze25 %
    • H-Scanning Frequency30~81 kHz
    • Maximum Pixel Frequency594 MHz
    • V-Scanning Frequency48~75 Hz
    • Dynamic Contrast Ratio10000:1
  • Connectivity
    • HDMI In1
    • DP InNo
    • USB1
    • Audio InNo
    • Audio OutStereo Mini Jack
    • Video OutNo
    • RS232 InYes
    • RS232 OutNo
    • RJ45 InYes
    • RJ45 OutNo
    • IR InNo
    • HDBaseT InNo
    • WiFiYes
    • 3G DongleNo
  • Power
    • Power SupplyAC 100 – 240 V 50 / 60 Hz
    • Power Consumption (On Mode)27.5 W
    • Power Consumption (Sleep Mode)0.5 W
  • Dimension
    • Set Dimension (WxHxD)322 x 193.5 x 28.2 mm
    • Package Dimension (WxHxD)376 x 132 x 248 mm
  • Weight
    • Set Weight0.9 kg
    • Package Weight1.7 kg
  • Mechanical Specification
    • VESA Mount100 x 100 mm
    • Bezel Width12.2 mm
    • Frame MaterialNon-Glossy
  • Operation Conditions
    • Temperature0 ~ 40℃
    • Humidity10 ~ 80 %, non-condensing
  • General Feature
    • External Memory SlotNo
  • Optional Feature
    • MountNo
    • StandInbox (Simple Stand) (2ea)
  • Internal Player (MagicInfo)
    • MagicInfo Daisychain Videowall SupportNo
  • Eco
    • Energy Efficiency ClassN/A
  • Certification and Compliance
    • EMCClass B FCC (USA) Part 15, Subpart B   KCC/EK (Korea) Tuner : KN32 / KN35   Tunerless : KN32 / KN35 CE (Europe) EN55032 : 2012 or 2015   EN55024:2010 or EN 55035:2017 VCCI (Japan) VCCI CISPR32:2016   CCC(China) GB/T9254-2008   GB17625.1-2012 BSMI (Taiwan) CNS13438 ( ITE EMI ) CNS14336-1 ( ITE Safety ) CNS15663 (RoHS)   C-Tick (Australia) AS/NZS CISPR32:2015   GOST(Russia/CIS) ROCT CISPR 24-2013   ROCT CISPR 22:2005
    • SafetyCB (Europe) : IEC60950-1/EN60950-1CCC (China) : GB4943.1-2011PSB (Singapore ) : PSB+IEC60950-1NOM (Mexico ) : NOM-001-SCFI-1993IRAM (Argentina ) : IRAM+IEC60950-1SASO (Saudi Arabia ) : SASO+IEC60950-1BIS(India) : IEC60950-1 / IS13252NOM(Mexico) : Tuner : NOM-001-SCFI-1993 Tunerless : NOM-019-SCFI-1998KC(Korea) : K 60950-1EAC(Russia) : EAC+IEC60950-1INMETRO(Brazil) : INMETRO+IEC60950-1BSMI(Taiwan) : BSMI+IEC60950-1RCM(Australia) : IEC60950-1/AS/NZS 60950-1UL(USA) : cUL60950

Brand

Samsung
